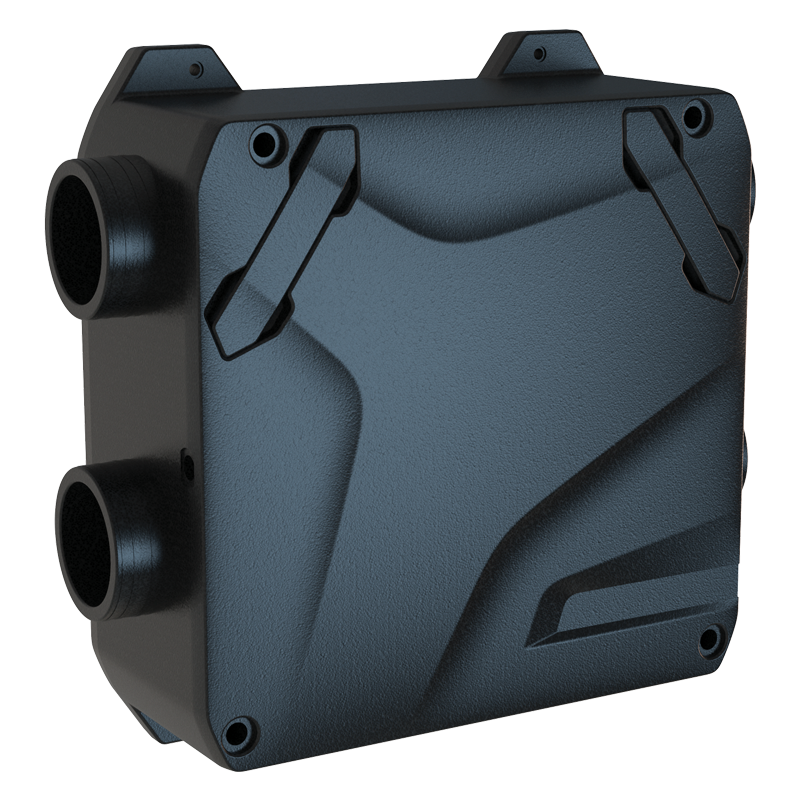

Vents Enave-C 120 P A21 R

Suspended air handling units with a counterflow polystyrene or enthalpy heat exchanger

	Unit of measurement	Enave-C 120 P A21 R
Phases	-	1
Maximum supply voltage	V	230
Minimum supply voltage	V	230
Power supply frequency	Hz	50/60
Rated power	W	59
Unit current	A	0.5
Maximum airflow	m³/h	156
Sound pressure level LpA at 3 m	dB(A)	27
Heat recovery efficiency, max	%	94
Heat exchanger type	-	Counter flow
Heat exchanger material	-	Polystyrene
Weight	kg	8
Supply filter	-	G4 / Coarse > 60% (option F7 / ePM1 60%)
Extract filter	-	G4 / Coarse > 60%
Transported air temperature (max)	°С	40
Transported air temperature (min)	°С	-25
Ambient air temperature min	°С	1
Ambient air temperature max	°С	40
Ingress protection rating	-	IP22
Ambient air humidity max	%	60
Ingress protection rating of the drive	-	IP44

Trademark	Vents
Model	Enave-C 120 P A21 R
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-80.1	A+	-42	A	-17.5	E
Type of ventilation unit	Bidirectional
Type of drive installed	Variable speed
Type of heat recovery system	Recuperative
Thermal efficiency of heat recovery (%)	83
Maximum flow rate (m³/h)	132
Electric power input (W)	113
Reference flow rate (m³/s)	0.026
Reference pressure difference (Pa)	50
Specific power input (SPI) (W/(m³/h))	0.229
Control typology	Local demand control
Maximum internal leakage rates (%)	2.1
Maximum external leakage rates (%)	2.6
Sound power level (dB(A))	48
Declared typology	RVU BVU
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	703.4		166.4		121.4
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	8898		4548		2057

Datasheet

"VENTS Enave-C 100/120 P" product description 10-2025

1.34 Mb

Manual

"Sensor control panel A14/A15" user’s manual 07-2024 (V55-7EN-02)

1.21 Mb

Manual

"VENTS Enave-C 100 P A14" user’s manual 03-2026 (V224EN-03)

2.95 Mb

Manual

"VENTS Enave-C(T) 100 P A21" user’s manual 12-2025 (V320EN-01)

3.21 Mb

BIM/CAD models

Enave-C 100/120 P - BIM model

999 Kb


Enave-C 120 P A21 R - image 1

826 Kb

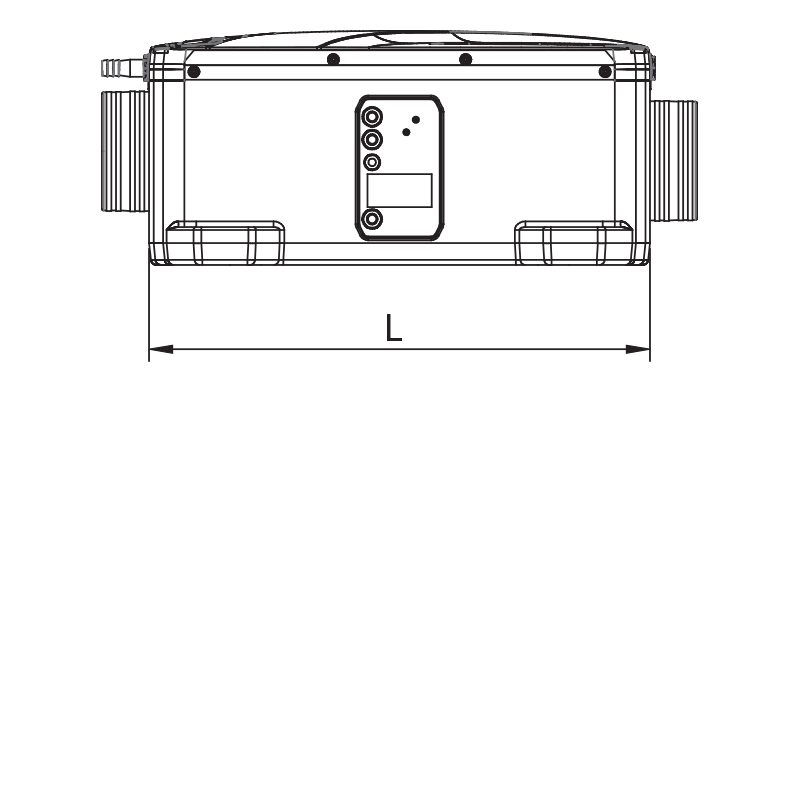

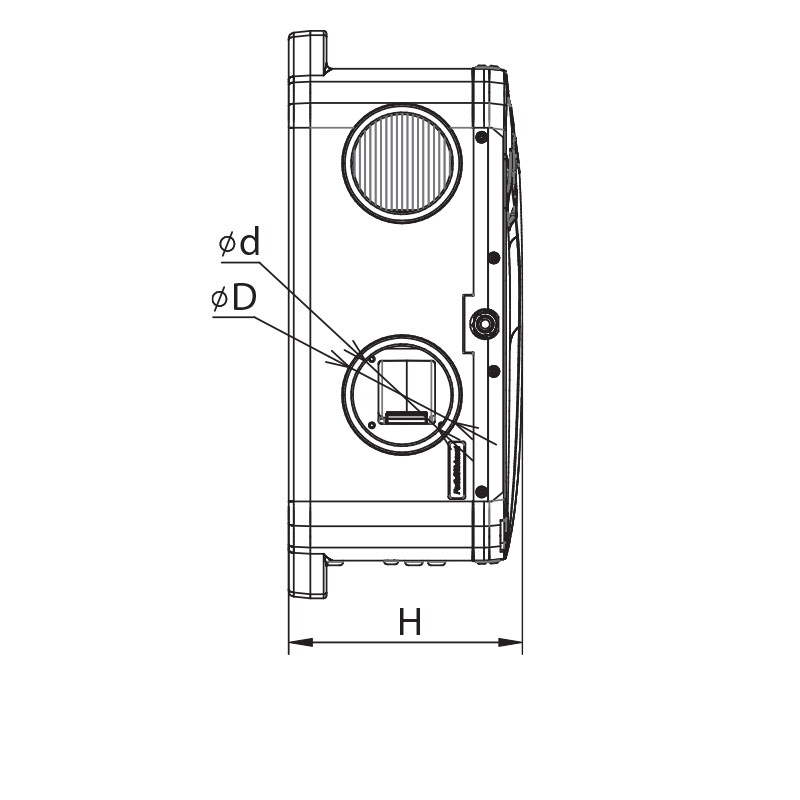

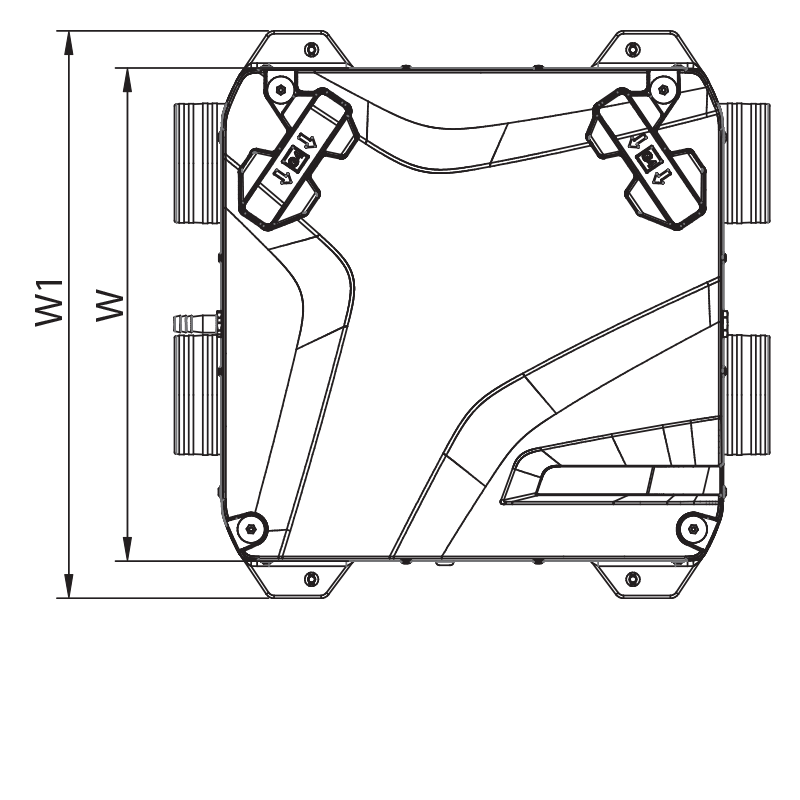

ØD	Ød	H	W	L	W1
125	104	247	522	530	600

Control Panels for AHU

Name	Photo	Description
Vents A25		Touch screen control panel for controlling industrial and residential air handling units
Vents A22		Control panels for controlling industrial and residential air handling units
Vents A22 WiFi		Control panels for controlling industrial and residential air handling units

Sensors

Name	Photo	Description
Vents HV2		Humidity sensor
Vents CO2-1		CO2 sensors
Vents CO2-2		CO2 sensors
Vents HR-S		Electro-mechanical humidistat

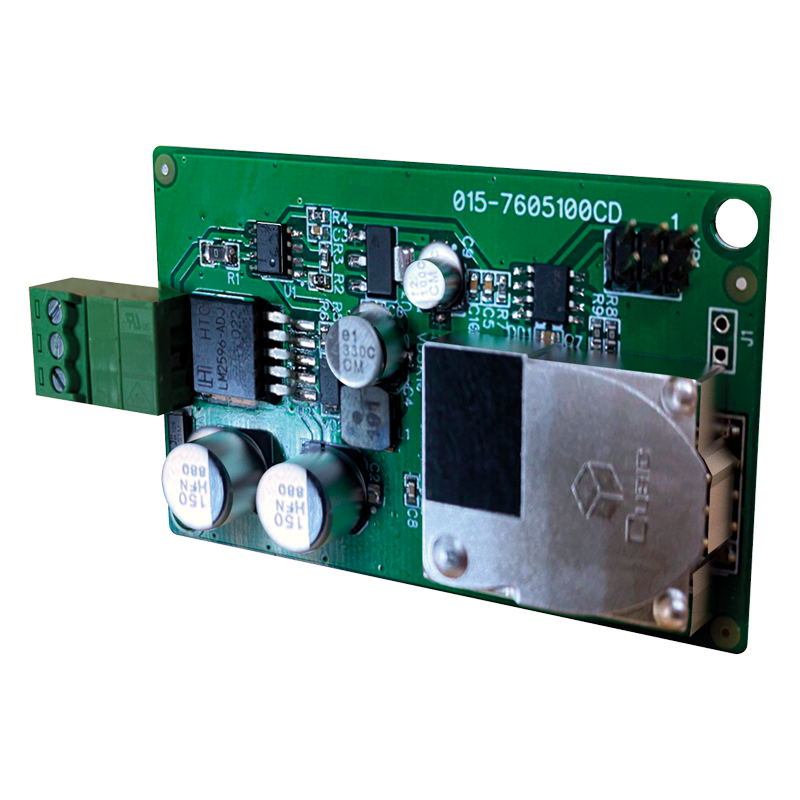

Vents CO2-3		CO2 sensor
