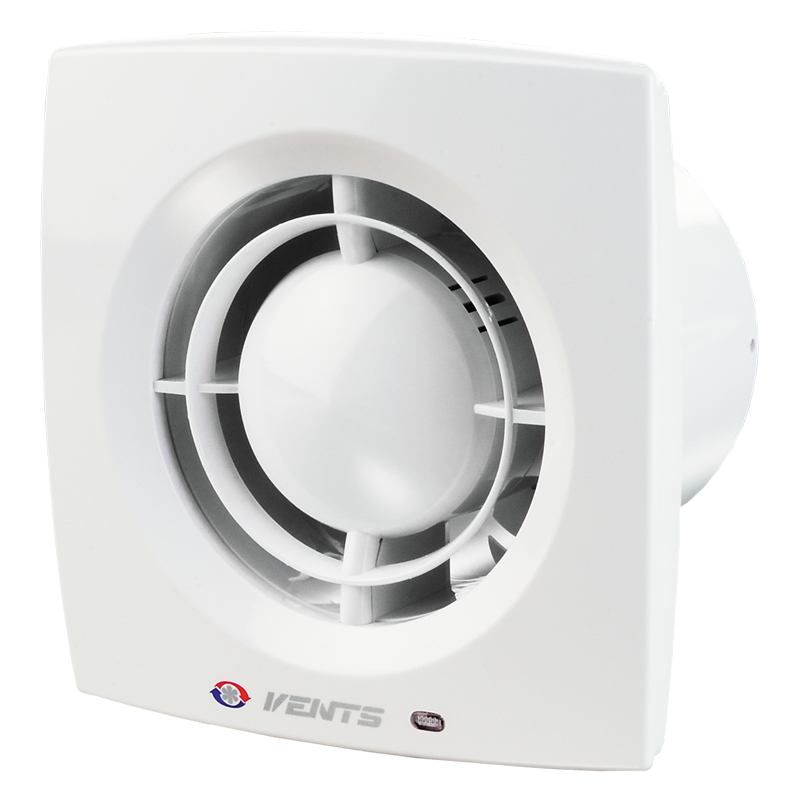

| Unit of measurement | 125 X1 L | |
| Connected air duct size | mm | 125 |
| Phases | - | 1 |
| Minimum supply voltage | V | 220 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50 |
| Rated power | W | 16 |
| Unit current | A | 0.1 |
| Maximum airflow | m³/h | 185 |
| Rotation speed at 50hz | - | 2400 |
| Sound pressure level LpA at 3 m | dB(A) | 34 |
| Weight | kg | 0.73 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP24 |
| Impeller material | - | Plastic |
| Ø D | B | H | L | L1 |
|---|---|---|---|---|
| 125 | 177 | 140 | 114 | 13 |
| Name | Photo | Description |
|---|---|---|

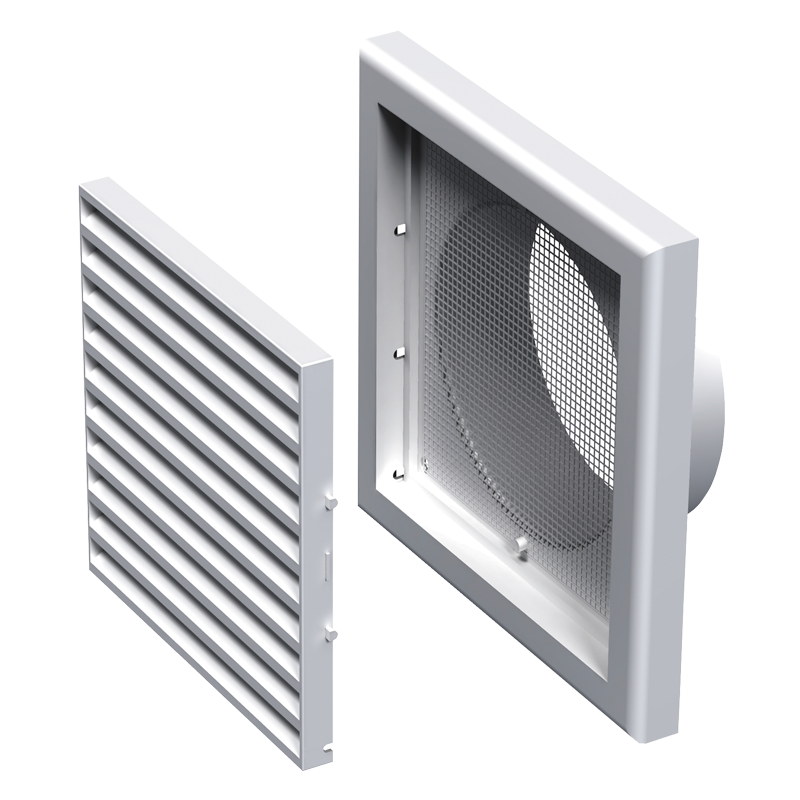

| Vents MV 120 V |
|
Two-piece plastic grilles with angled louvers |
| Name | Photo | Description |
|---|---|---|
| Vents PVT 050/10 |
|
The adhesive PVC tape is an insulation tape made of plasticized PVC base covered with a glue layer |
| Vents PVT 050/30 |
|
The adhesive PVC tape is an insulation tape made of plasticized PVC base covered with a glue layer |
| Vents PVT 050/50 |
|
The adhesive PVC tape is an insulation tape made of plasticized PVC base covered with a glue layer |
| Vents C 125 |
|
The clamps are designed for quick and reliable mounting and connection of various round ventilation system components. Clamps are made of stainless steel band |
| Name | Photo | Description |
|---|---|---|
| Vents 2805 |
|
Wall mounting |
| Name | Photo | Description |
|---|---|---|
| Vents Polyvent N |
|
Flexible uninsulated air duct made of metallized film |
| Name | Photo | Description |
|---|---|---|
| Vents KO 125 |
|
Back valve is designed for domestic fan |
| Name | Photo | Description |
|---|---|---|
| Vents PO 400 |
|
Window ventilators for supply ventilation |
| Name | Photo | Description |
|---|---|---|
| Vents MV 122 VK |
|
Supply and exhaust hoods |
| Name | Photo | Description |
|---|---|---|
| Vents MVM 122 V N |
|
Exhaust metal hoods |
