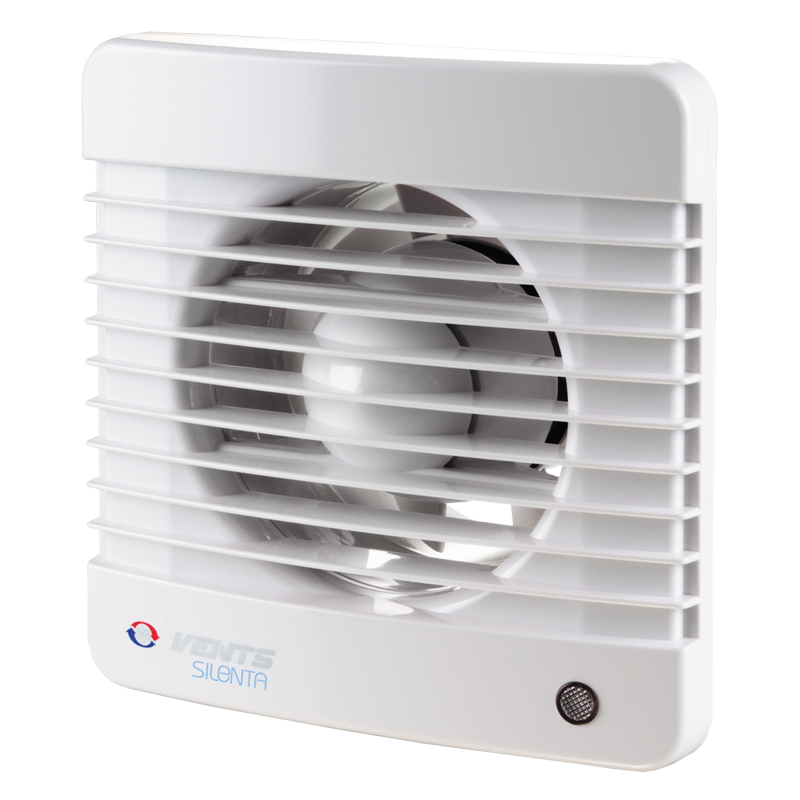

/ Product catalogue / Domestic ventilation / Residential axial fans / Classic / Silenta-M / 100 Silenta-MV
| Unit of measurement | 100 Silenta-MV | |
| Connected air duct size | mm | 100 |
| Minimum supply voltage | V | 220 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50/60 |
| Rated power | W | 7 |
| Unit current | A | 0.035 |
| Maximum airflow | m³/h | 78 |
| Sound pressure level LpA at 3 m | dB(A) | 26 |
| Weight | kg | 0.48 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP34 |
| Impeller material | - | Plastic |
| Ø D | B | H | L | L1 |
|---|---|---|---|---|
| 100 | 159 | 135 | 89 | 23 |
| Name | Photo | Description |
|---|---|---|

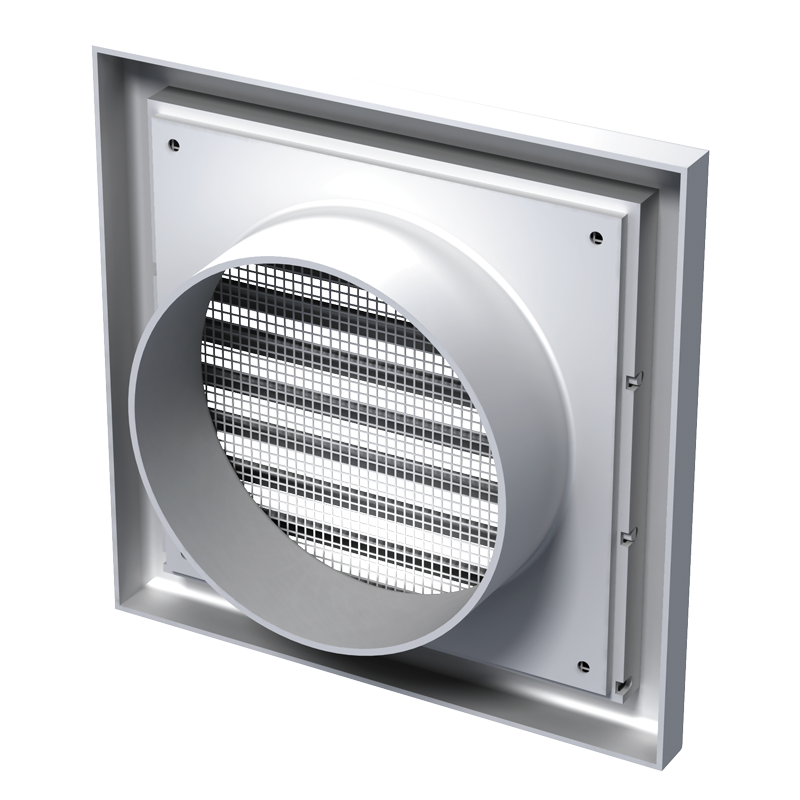

| Vents MV 100 V |
|
Two-piece plastic grilles with angled louvers |
| Name | Photo | Description |
|---|---|---|

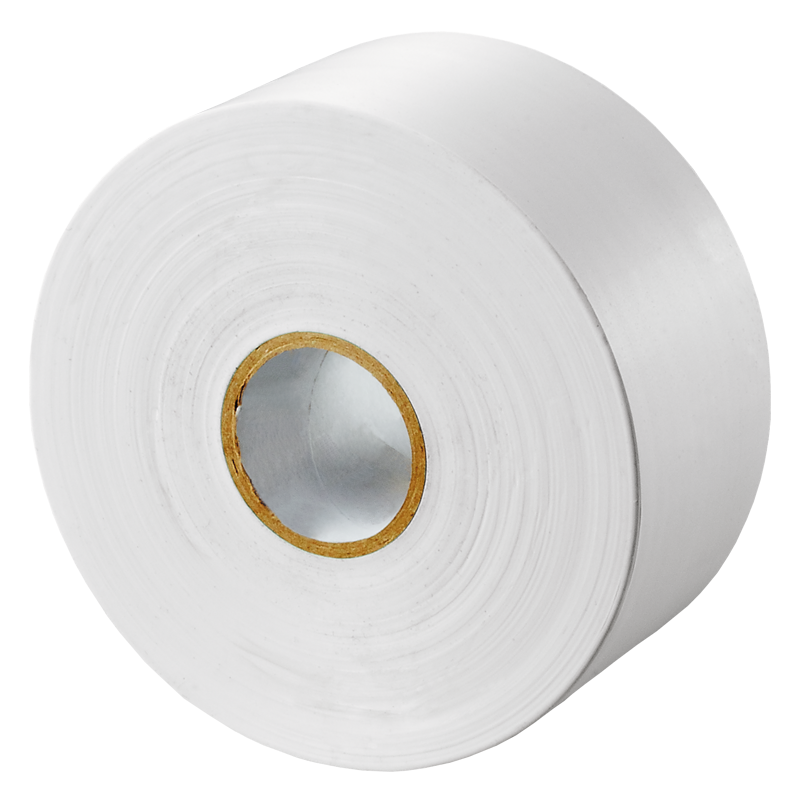

| Vents PVT 050/10 |
|
The adhesive PVC tape is an insulation tape made of plasticized PVC base covered with a glue layer |
| Vents PVT 050/30 |
|
The adhesive PVC tape is an insulation tape made of plasticized PVC base covered with a glue layer |
| Vents PVT 050/50 |
|
The adhesive PVC tape is an insulation tape made of plasticized PVC base covered with a glue layer |

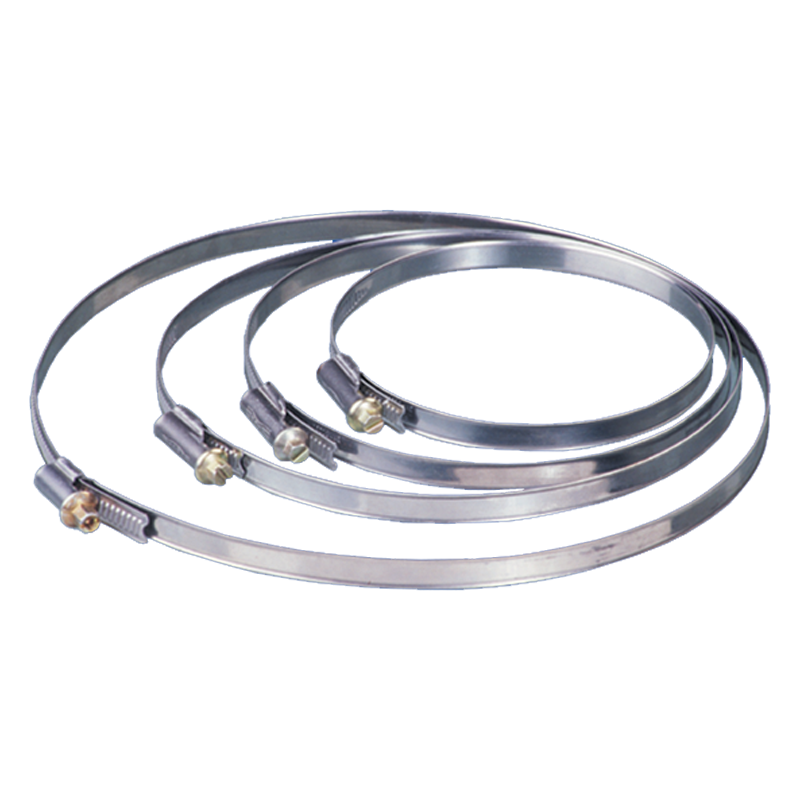

| Vents C 100 |
|
The clamps are designed for quick and reliable mounting and connection of various round ventilation system components. Clamps are made of stainless steel band |
| Name | Photo | Description |
|---|---|---|
| Vents 1805 |
|
Wall mounting |
| Name | Photo | Description |
|---|---|---|

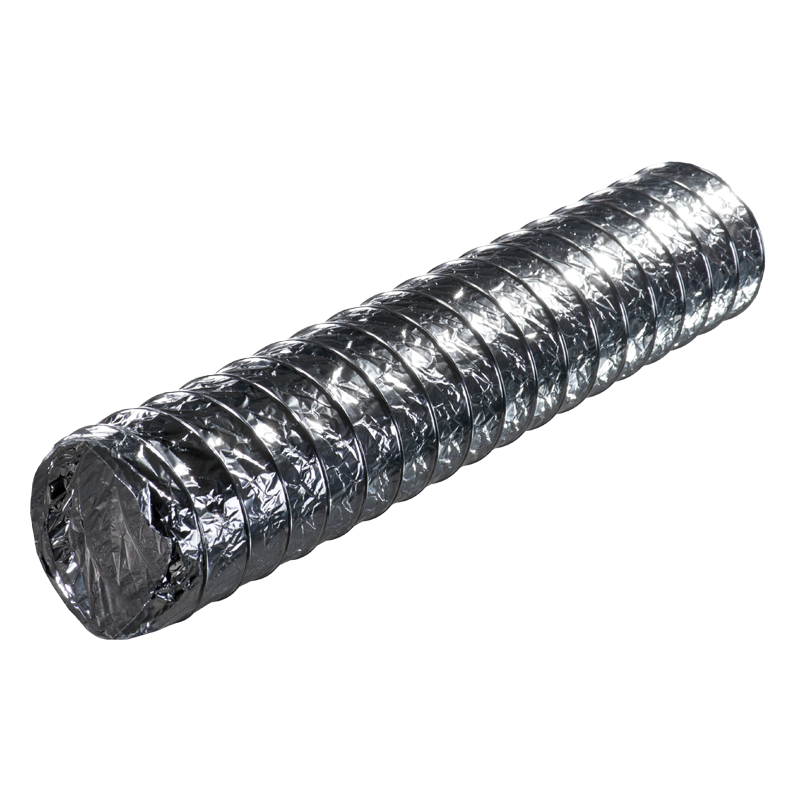

| Vents Polyvent N |
|
Flexible uninsulated air duct made of metallized film |
| Name | Photo | Description |
|---|---|---|

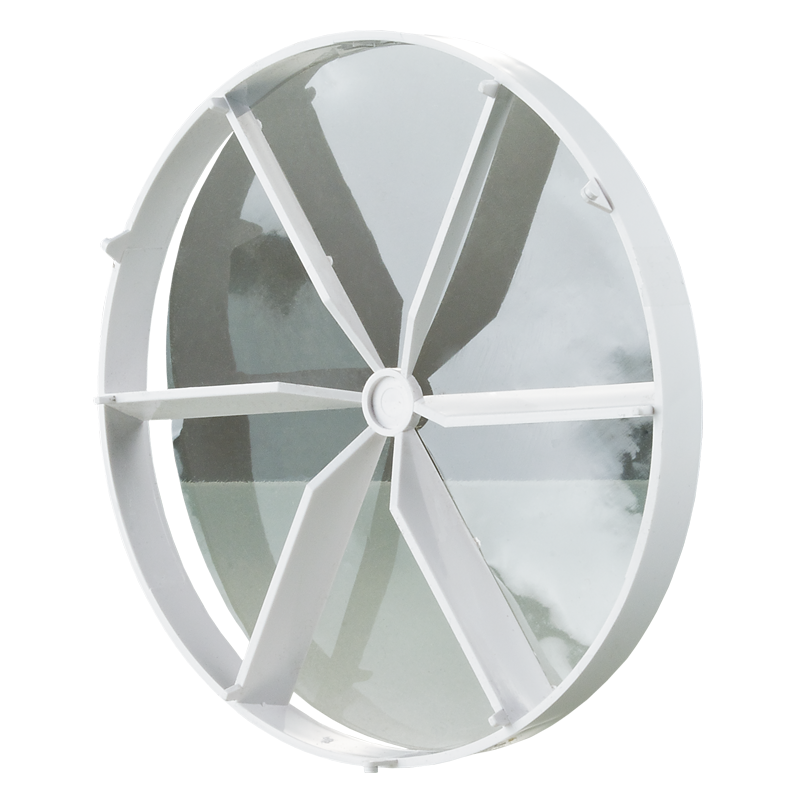

| Vents KO 100 |
|
Back valve is designed for domestic fan |

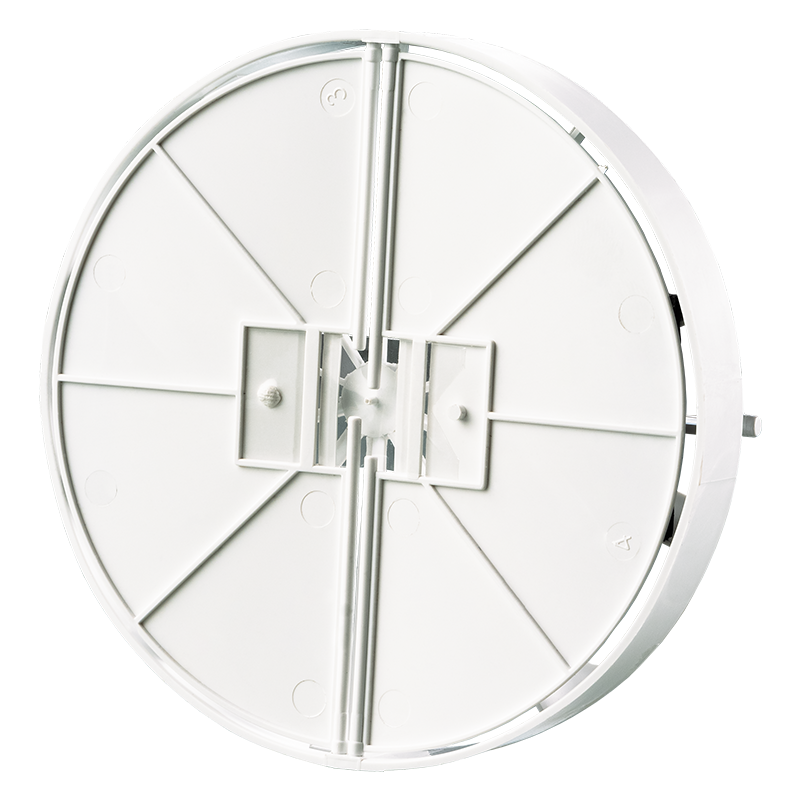

| Vents КО1 100 |
|
Back valve is designed for domestic fan |
| Name | Photo | Description |
|---|---|---|
| Vents PO 400 |
|
Window ventilators for supply ventilation |
| Name | Photo | Description |
|---|---|---|

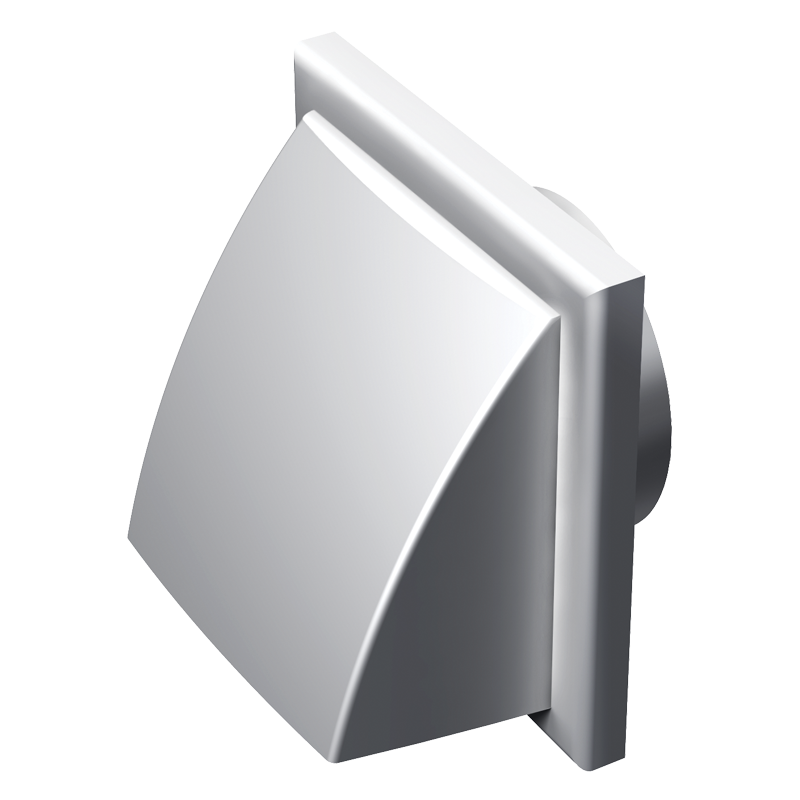

| Vents MV 102 VK |
|
Supply and exhaust hoods |
| Name | Photo | Description |
|---|---|---|

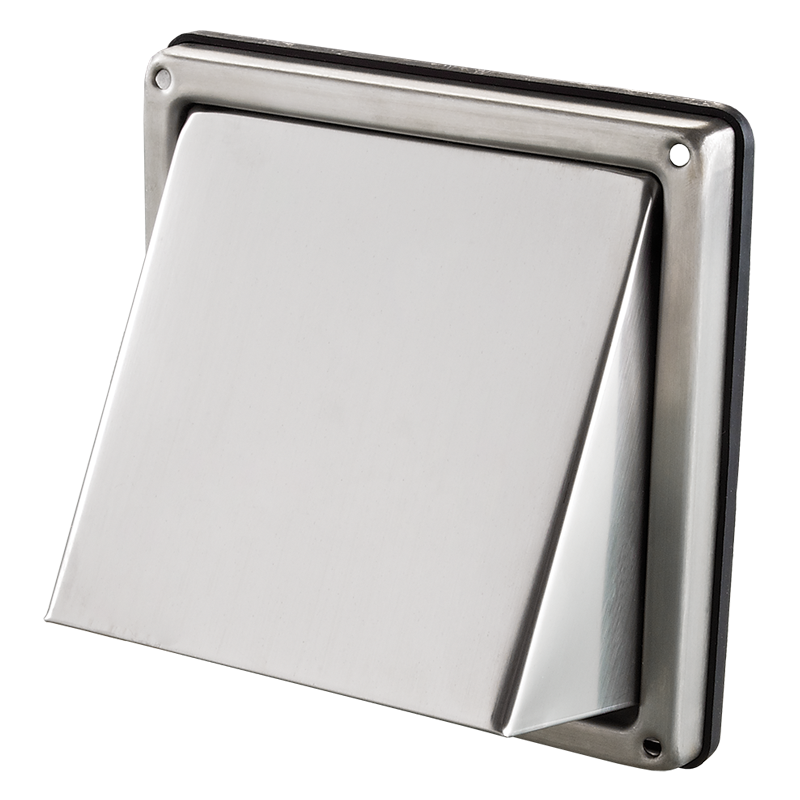

| Vents MVM 102 V N |
|
Exhaust metal hoods |
