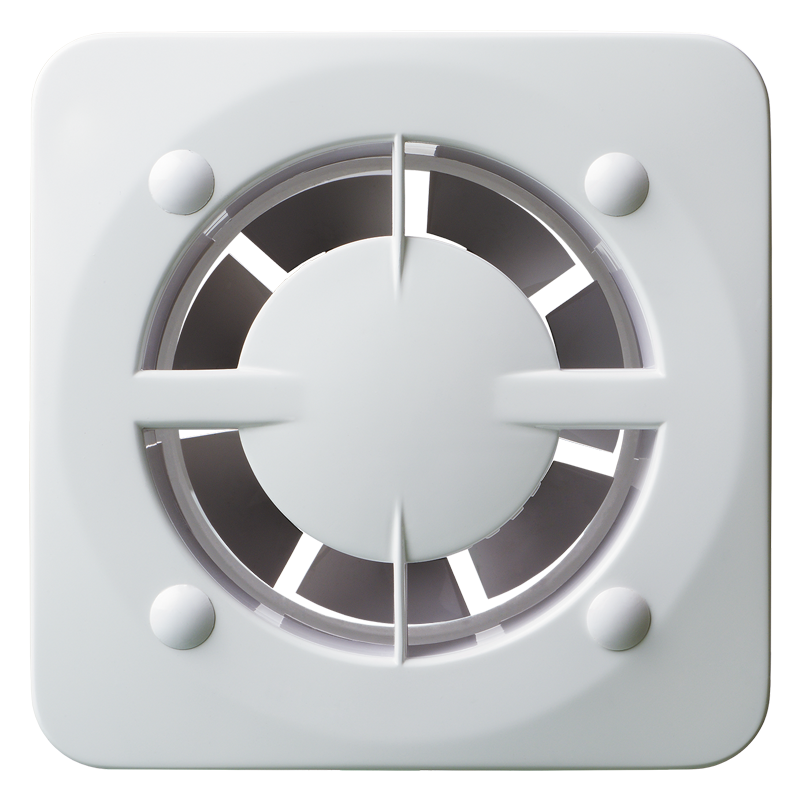

Vents 100 Base turbo

Axial extract high-performance fans, compatible with the Design decorative panels

Sound pressure level LpA at 3 m: 36 dB(A)
Impeller type: Axial
Casing material: Plastic

	Unit of measurement	100 Base turbo
Connected air duct size	mm	100
Phases	-	1
Minimum supply voltage	V	220
Maximum supply voltage	V	240
Power supply frequency	Hz	50/60
Rated power	W	15
Unit current	A	0.1
Maximum airflow	m³/h	122
Rotation speed at 50hz	-	2400
Sound pressure level LpA at 3 m	dB(A)	36
Ambient air temperature min	°С	1
Ambient air temperature max	°С	40
Ingress protection rating	-	IP24
Impeller material	-	Plastic

Create PDF

Trademark	Vents
Model	100 Base turbo
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-29.7	B	-13.3	E	-3.9	F
Type of ventilation unit	Unidirectional
Type of drive installed	Single speed
Type of heat recovery system	None
Maximum flow rate (m³/h)	122
Electric power input (W)	15
Reference flow rate (m³/s)	0.024
Specific power input (SPI) (W/(m³/h))	0.123
Control typology	Manual control
Maximum external leakage rates (%)	2.7
Declared typology	RVU UVU
Sound power level (dB(A))	56
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	154		154		154
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	3355		1715		776

Datasheet

"DESIGN CONCEPT: design solutions for domestic ventilation" сatalogue 2024

13.4 Mb

Manual

"VENTS Base" user's manual 07-2025 (V160-1EN-07)

2.65 Mb


100 Base turbo - image 1

773 Kb

∅D	B	L	L1
99	140	88	13

Plastic

Name	Photo	Description
Vents MV 100 V		Two-piece plastic grilles with angled louvers

Fittings

Name	Photo	Description
Vents PVT 050/10		The adhesive PVC tape is an insulation tape made of plasticized PVC base covered with a glue layer
Vents PVT 050/30		The adhesive PVC tape is an insulation tape made of plasticized PVC base covered with a glue layer
Vents PVT 050/50		The adhesive PVC tape is an insulation tape made of plasticized PVC base covered with a glue layer
Vents C 100		The clamps are designed for quick and reliable mounting and connection of various round ventilation system components. Clamps are made of stainless steel band

Flat duct

Name	Photo	Description
Vents 1805		Wall mounting

Flexible ducts

Name	Photo	Description
Vents Polyvent N		Flexible uninsulated air duct made of metallized film

Decorative panels

Name	Photo	Description

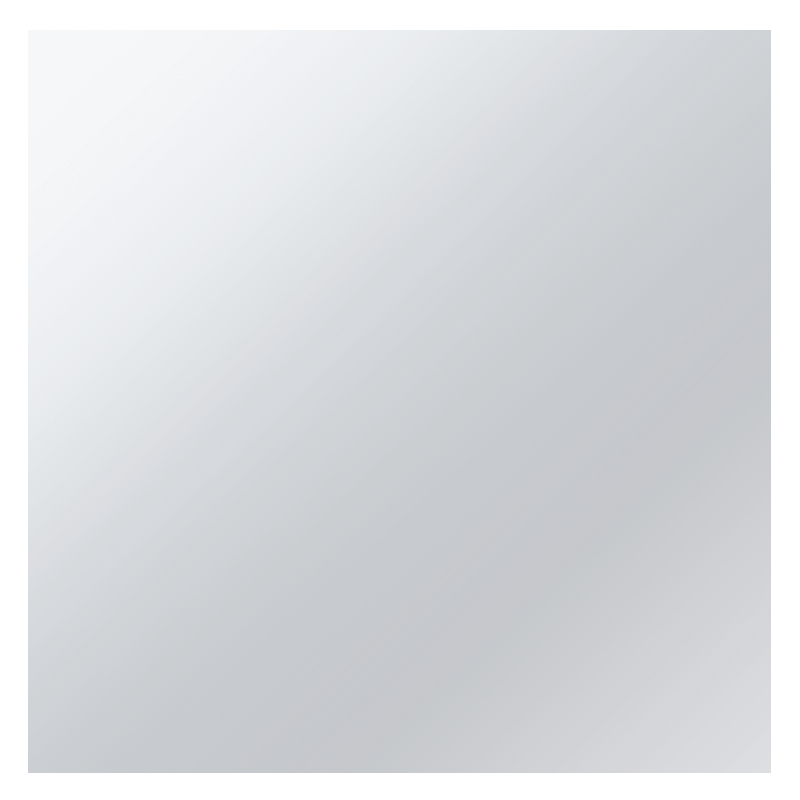

Vents FP 180 Plain		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
Vents FP 160 Plain		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

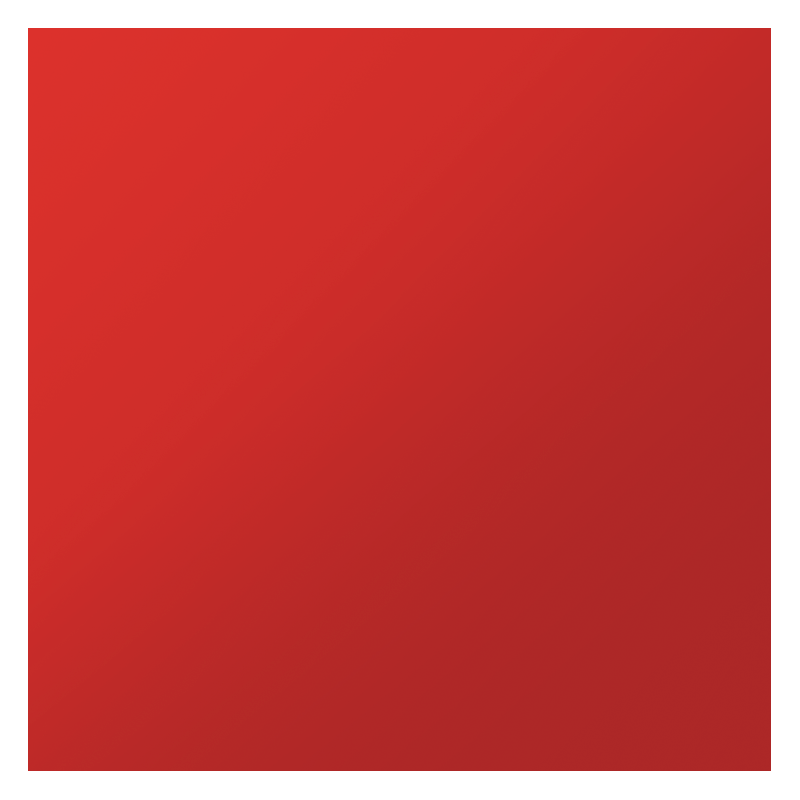

Vents FP 180 Plain red		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
Vents FP 160 Plain red		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

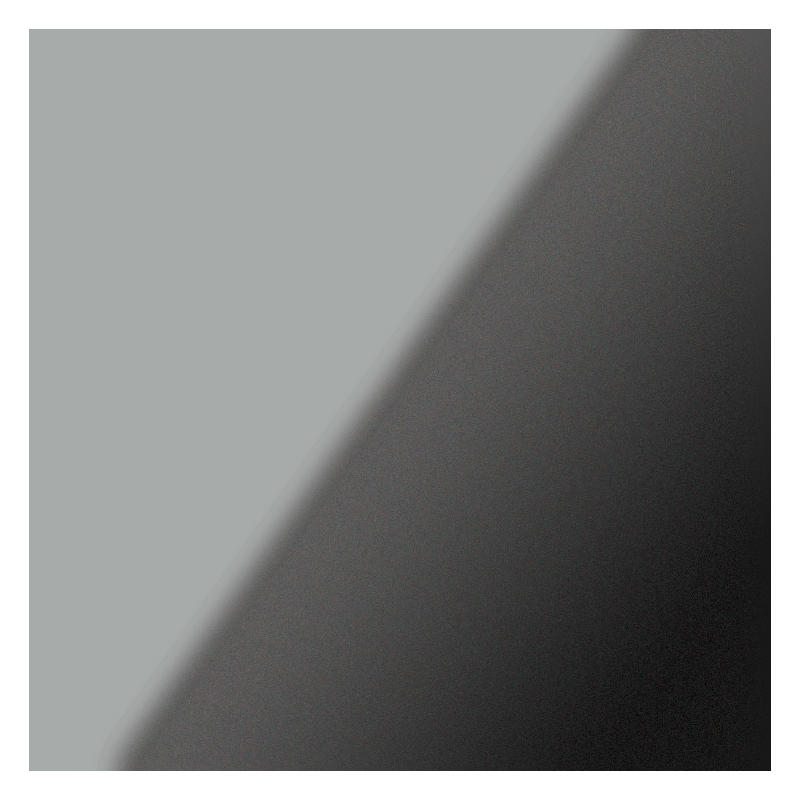

Vents FP 180 Plain black sapphire		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
Vents FP 160 Plain black sapphire		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

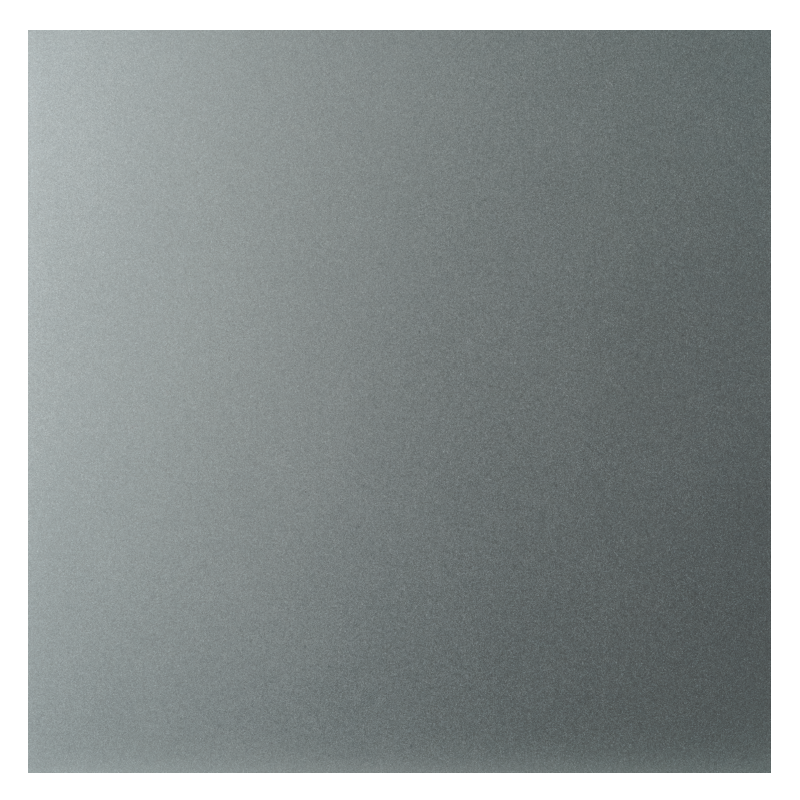

Vents FP 180 Plain metallic		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
Vents FP 180 Plain wing		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

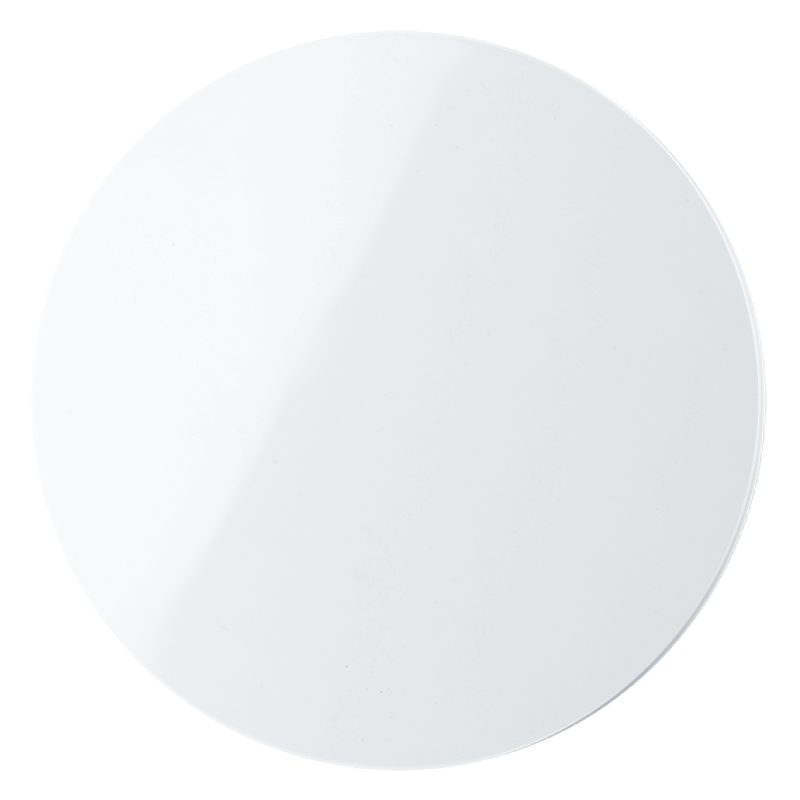

Vents FPB 180/100 Disc		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

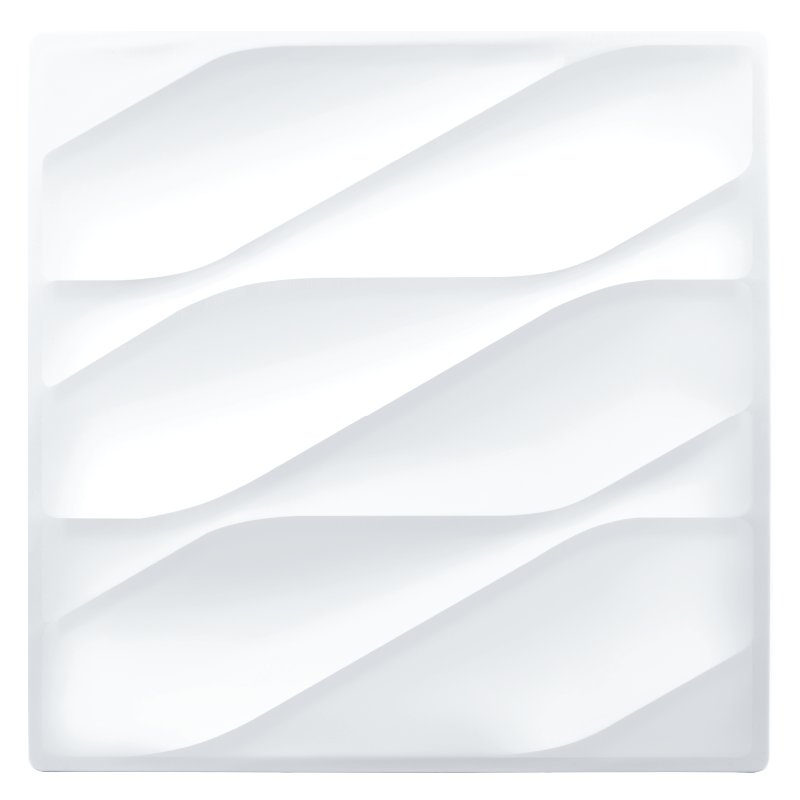

Vents FP 180 Aqua		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

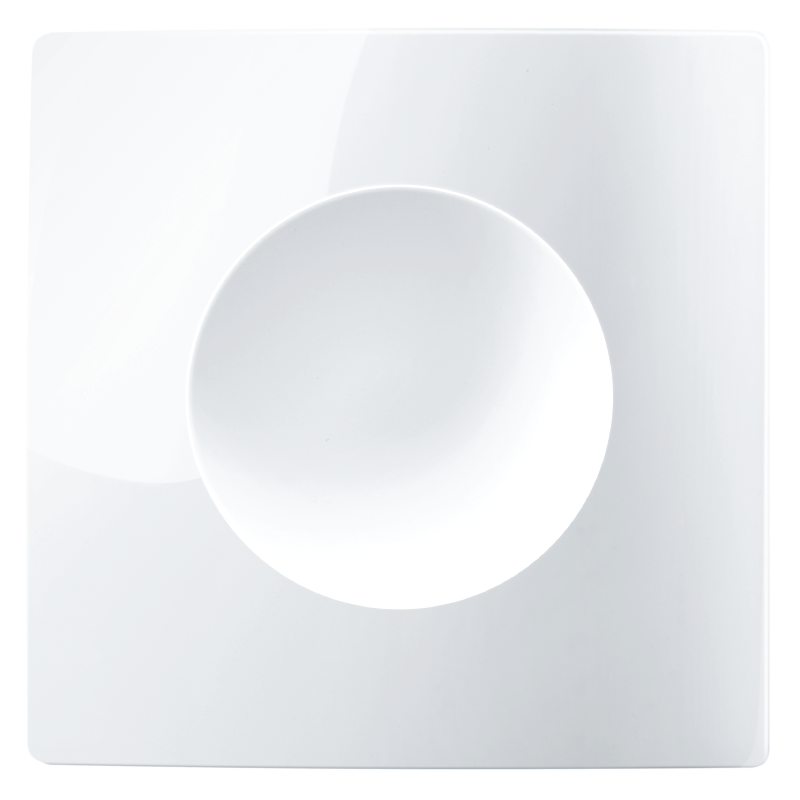

Vents FP 180 Mars		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

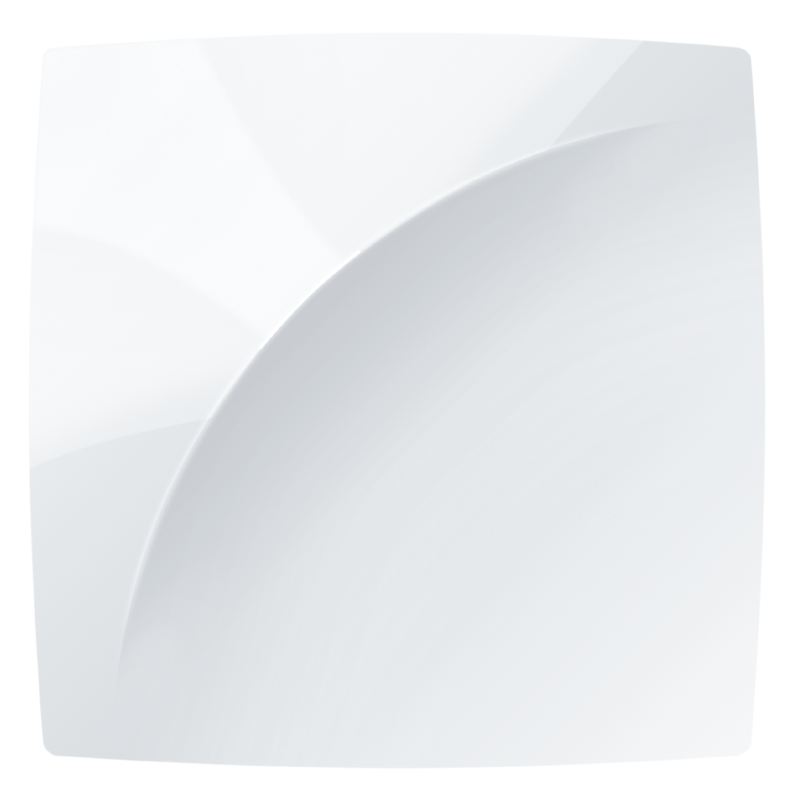

Vents FP 180 Mystery		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

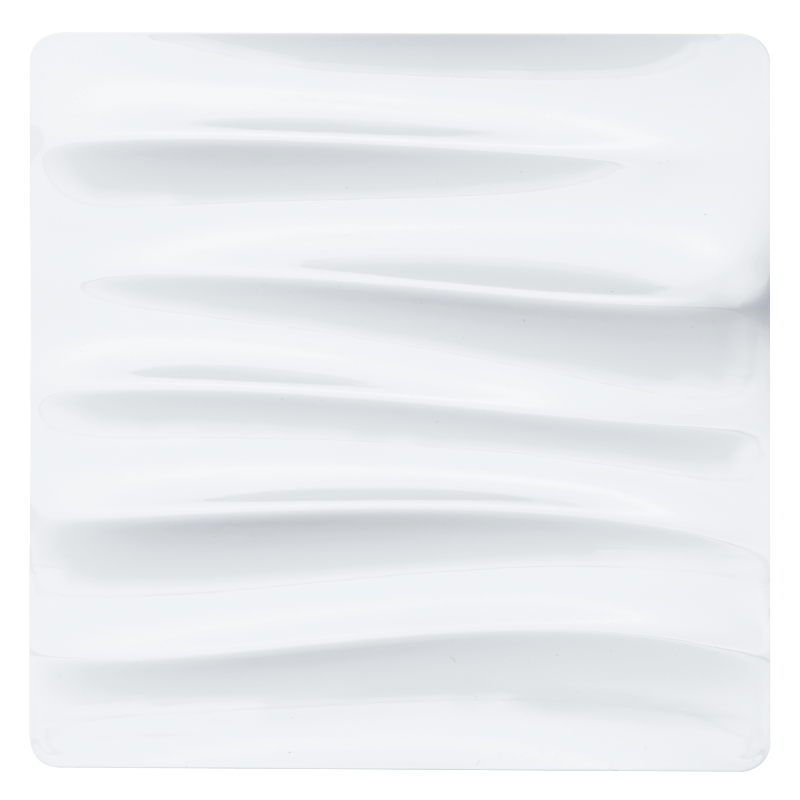

Vents FP 160 Reef		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

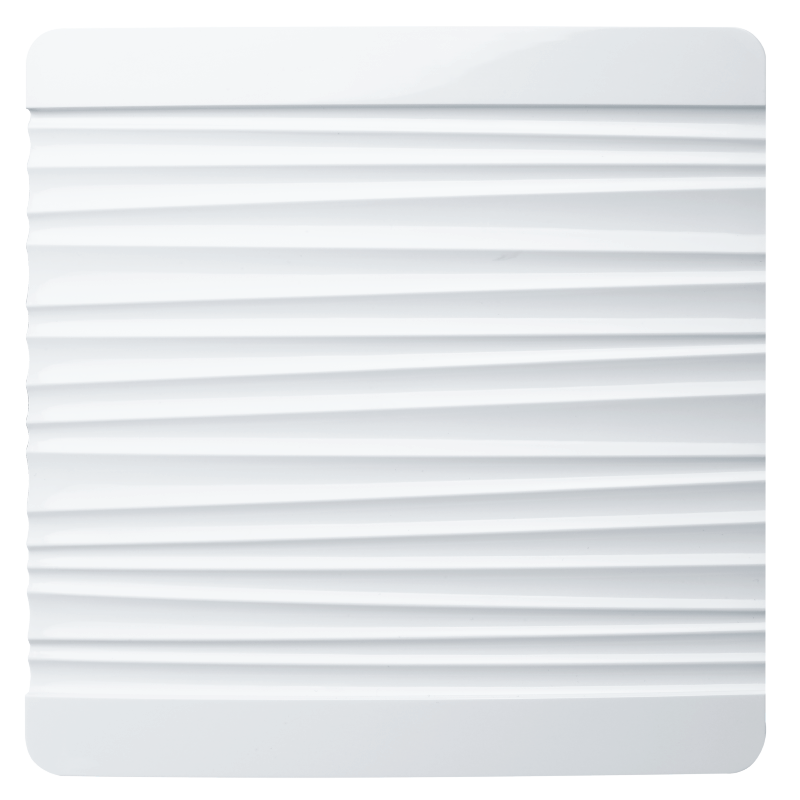

Vents FP 160 Frizz		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

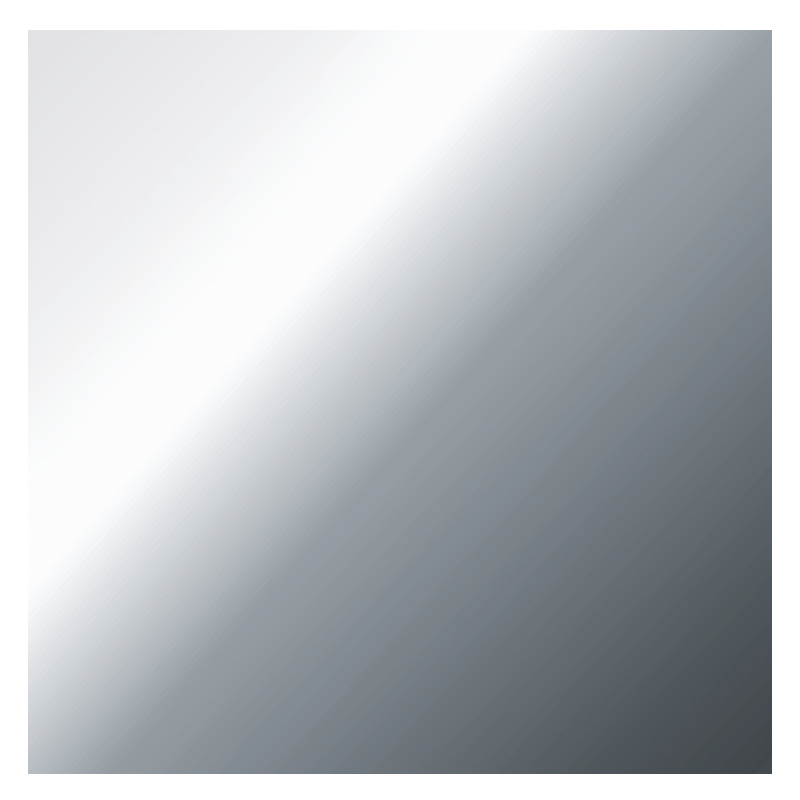

Vents FP 180 Plain chrome		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
Vents FP 160 Plain chrome		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

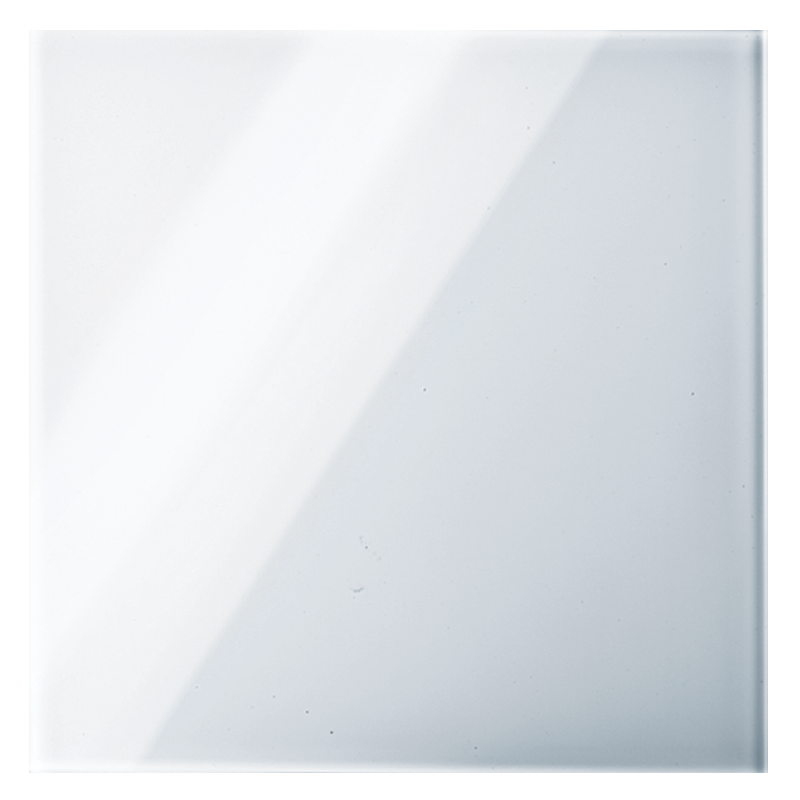

Vents FPB 180/100 Glass-1		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

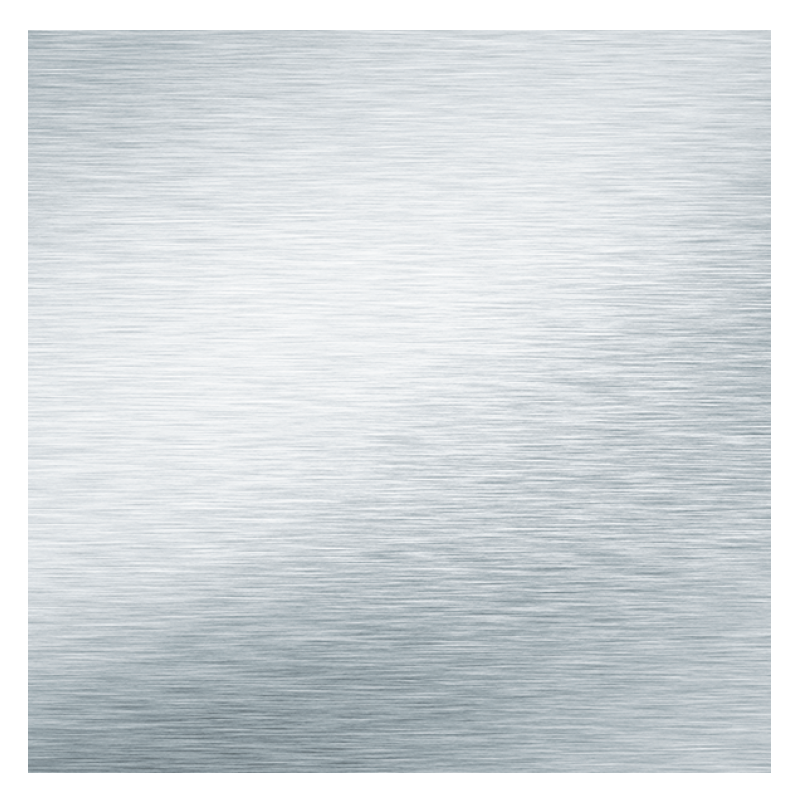

Vents FP 180 Plain alumat		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
Vents FP 160 Plain alumat		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
Vents FPB 160 Glass-1		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

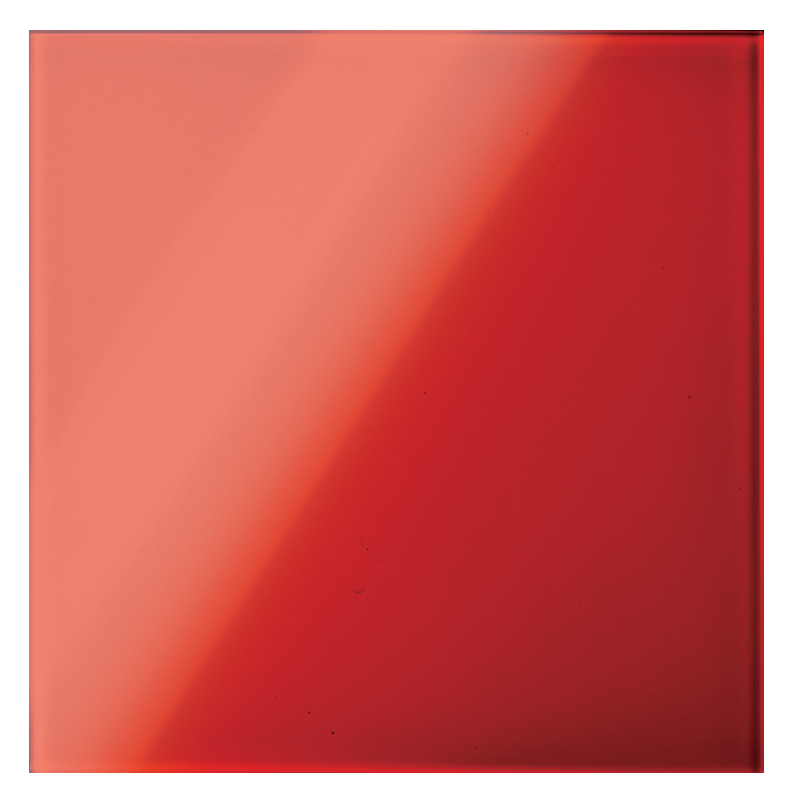

Vents FPB 160 Glass-1 red		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
Vents FPB 180/100 Glass-1 red		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

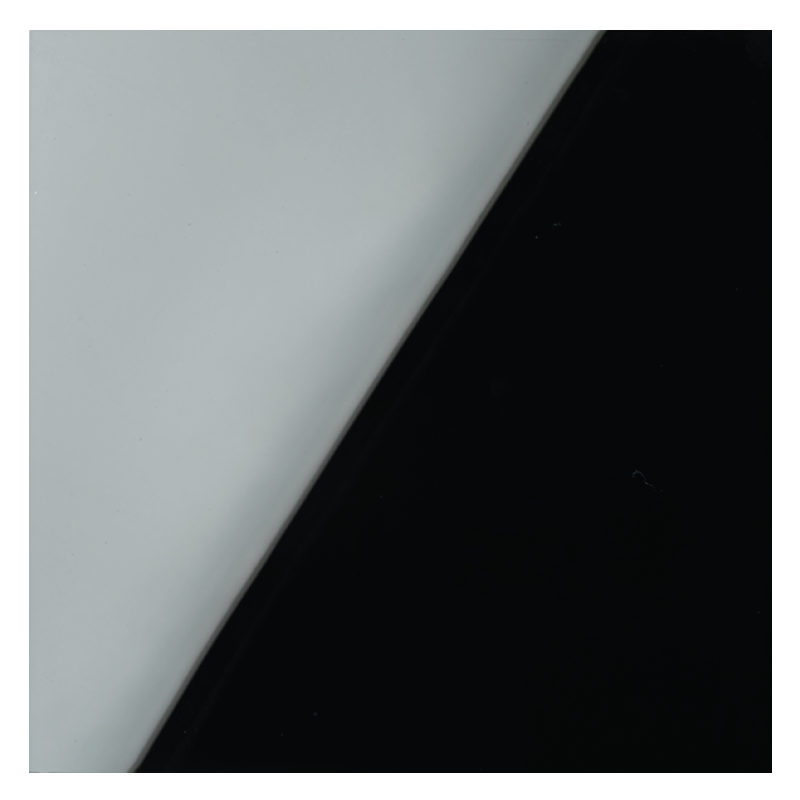

Vents FPB 160 Glass-1 black		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
Vents FPB 180/100 Glass-1 black		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.

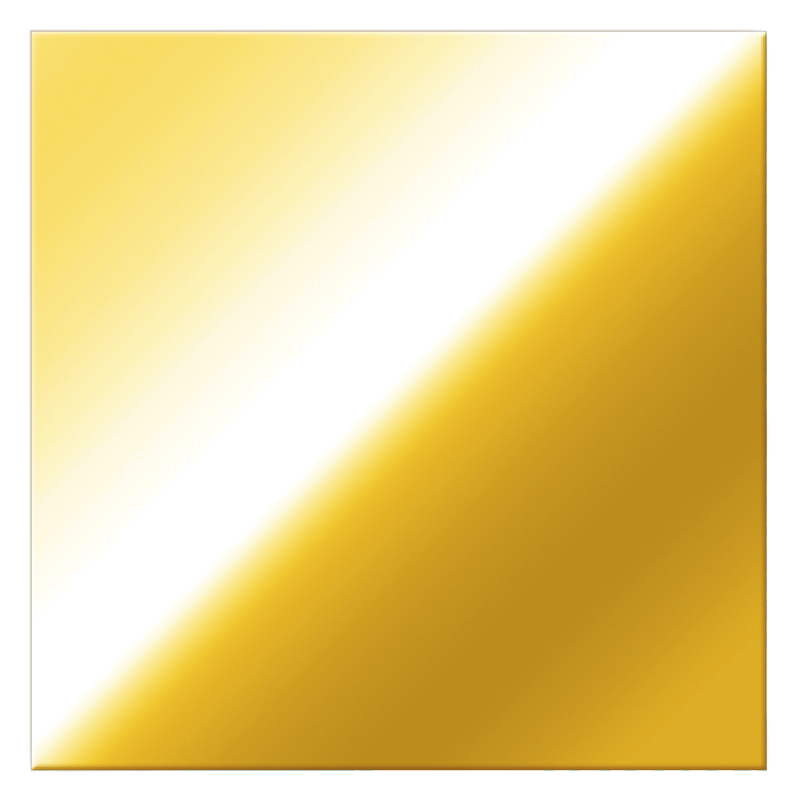

Vents FP 180 Plain gold		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
Vents FP 180 Plain dim		Removable decorative front panels are a universal solution allowing to choose the design of a fan or ventilation grille for any interior of a bathroom or kitchen.
