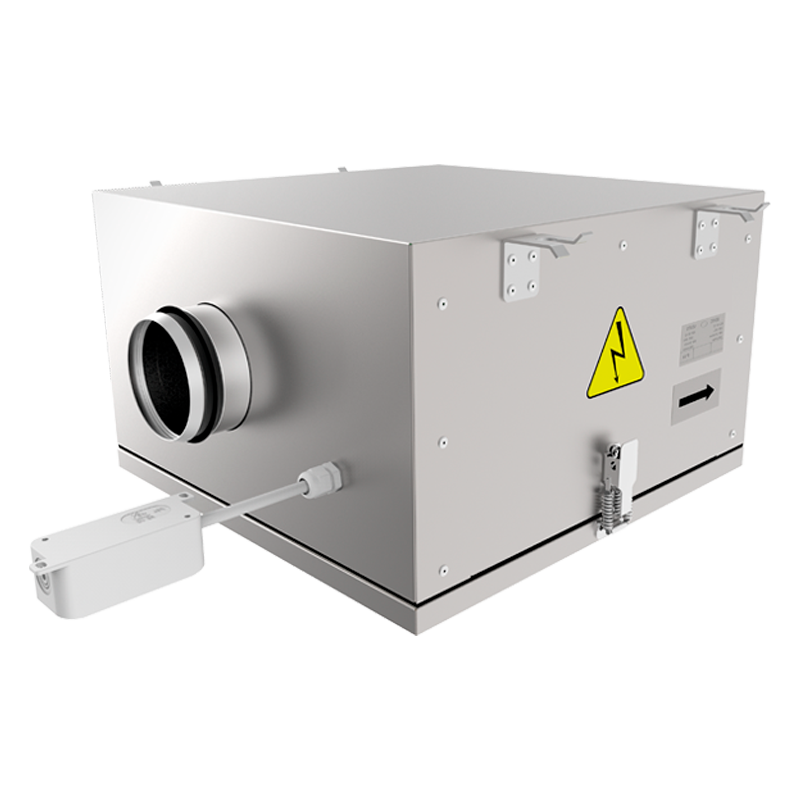

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round ducts / KSB K2 EC| Lineup Vents KSB K2 EC | Connected air duct size, mm | Phases | Rated power, W | Maximum airflow, m³/h | Number of speeds |
|---|---|---|---|---|---|
| 100 | 1 | 69 | 341 | 1 | |
| 1 | 69 | 341 | 1 | ||
| 125 | 1 | 78 | 444 | 1 | |
| 1 | 78 | 444 | 1 | ||
| 150 | 1 | 81 | 495 | 1 | |
| 1 | 81 | 495 | 1 | ||
| 160 | 1 | 85 | 454 | 1 | |
| 1 | 85 | 454 | 1 | ||
| 200 | 1 | 111 | 740 | 1 | |
| 1 | 111 | 740 | 1 | ||
| 250 | 1 | 164 | 1097 | 1 | |
| 1 | 164 | 1097 | 1 | ||
| 315 | 1 | 531 | 3053 | 1 | |
| 1 | 531 | 3053 | 1 | ||
| 355 | 1 | 527 | 3417 | 1 | |
| 1 | 527 | 3417 | 1 | ||
| 400 | 1 | 513 | 3633 | 1 | |
| 1 | 513 | 3633 | 1 | ||
| 450 | 3 | 1200 | 5620 | 1 | |
| 3 | 1200 | 5620 | 1 | ||
| 500 | 1 | 752 | 7145 | 1 | |
| 1 | 752 | 7145 | 1 |
Vents KSB 100 К2 ЕС
