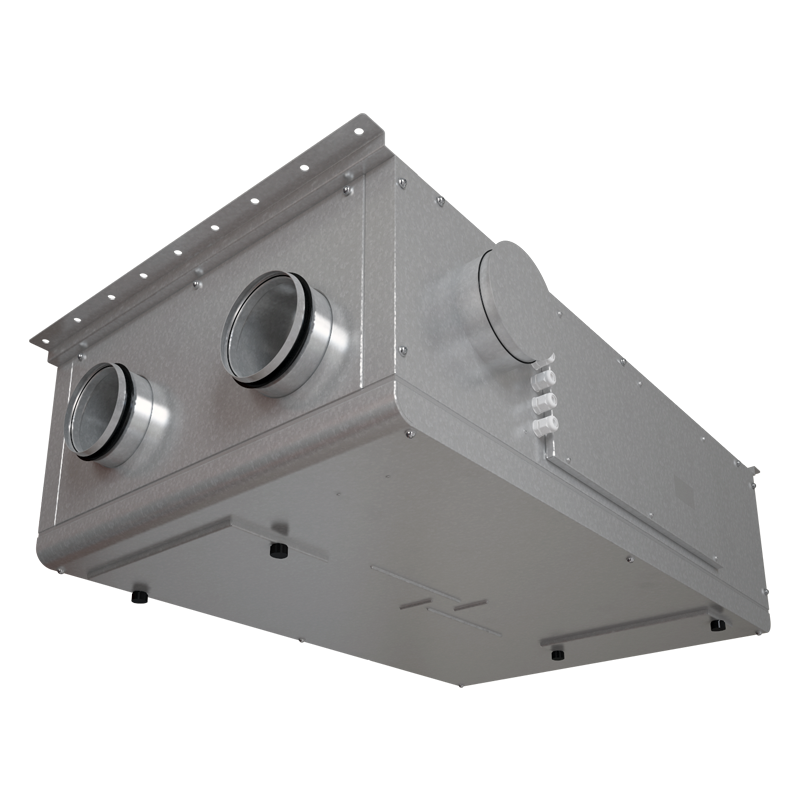

/ Product catalogue / Centralized air handling units / Rotary residential AHU / Suspended Units / VUTR PE EC / VUTR 650 PE EC L A21
| Unit of measurement | VUTR 650 PE EC L A21 | |
| Connected air duct size | mm | 200 |
| Phases | - | 1 |
| Maximum supply voltage | V | 230 |
| Minimum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Rated power | W | 367 |
| Power of electrical reheater | W | 2800 |
| Unit current | A | 13.7 |
| Maximum airflow | m³/h | 710 |
| Rotation speed at 50hz | - | 3600 |
| Sound pressure level LpA at 3 m | dB(A) | 36 |
| Heat recovery efficiency, max | % | 87 |
| Heat exchanger type | - | Rotary |
| Heat exchanger material | - | Aluminum |
| Weight | kg | 104 |
| Supply filter | - | G4, F7 (H13 option) |
| Extract filter | - | G4 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP22 |
| Ambient air humidity max | % | 80 |
| Ingress protection rating of the drive | - | IP44 |
| Trademark | Vents | |||||
| Model | VUTR 650 PE EC L A21 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -85.4 | A+ | -41.9 | A | -17 | E | |
| Type of ventilation unit | Bidirectional | |||||
| Type of drive installed | Variable speed | |||||
| Type of heat recovery system | Regenerative | |||||
| Thermal efficiency of heat recovery (%) | 83 | |||||
| Maximum flow rate (m³/h) | 650 | |||||
| Electric power input (W) | 340 | |||||
| Reference flow rate (m³/s) | 0.125 | |||||
| Reference pressure difference (Pa) | 50 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.269 | |||||
| Control typology | Local demand control | |||||
| Maximum internal leakage rates (%) | 2.7 | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU BVU | |||||
| Sound power level (dB(A)) | 55 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 142 | 142 | 142 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 8898 | 4548 | 2057 | ||||
| ØD | ØD1 | B | H | L | L1 |
|---|---|---|---|---|---|
| 160 | 125 | 818 | 361 | 1270 | 1365 |
