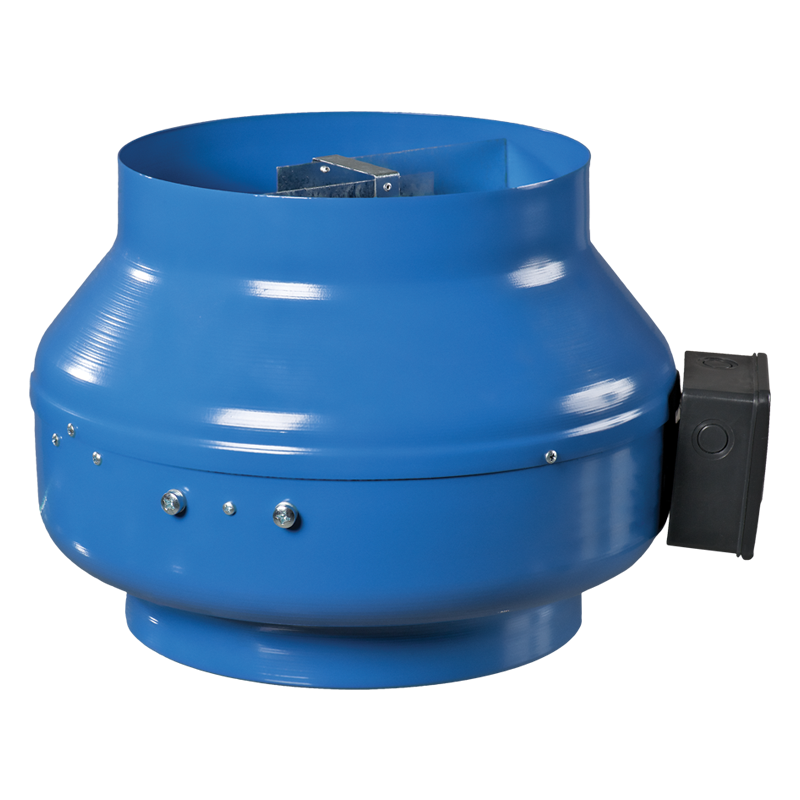

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round ducts / VKM / VKM 315| Unit of measurement | VKM 315 | ||
| Connected air duct size | mm | 315 | |
| Phases | - | 1 | |
| Minimum supply voltage | V | 220 | |
| Maximum supply voltage | V | 240 | |
| Power supply frequency | Hz | 50 | 60 |
| Rated power | W | 183 | |
| Unit current | A | 0.79 | |
| Maximum airflow | m³/h | 1340 | |
| Rotation speed at 50hz | - | 2600 | |
| Sound pressure level LpA at 3 m | dB(A) | 53 | |
| Weight | kg | 8 | |
| Transported air temperature (max) | °С | 45 | |
| Transported air temperature (min) | °С | -25 | |
| Ingress protection rating | - | IPX4 | |
| Ingress protection rating of the drive | - | IP44 | |
| Impeller material | - | Plastic | |
| Trademark | Vents |
| Model | VKM 315 |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 306 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 37.6 |
| Declared typology | NRVU UVU |
| Effective electric power input (kW) | 0.17 |
| Sound power level (dB(A)) | 72 |
| ØD | ØD1 | B | B1 | L | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|
| 314 | 405 | 455 | 415 | 260 | 30 | 30 | 40 |
