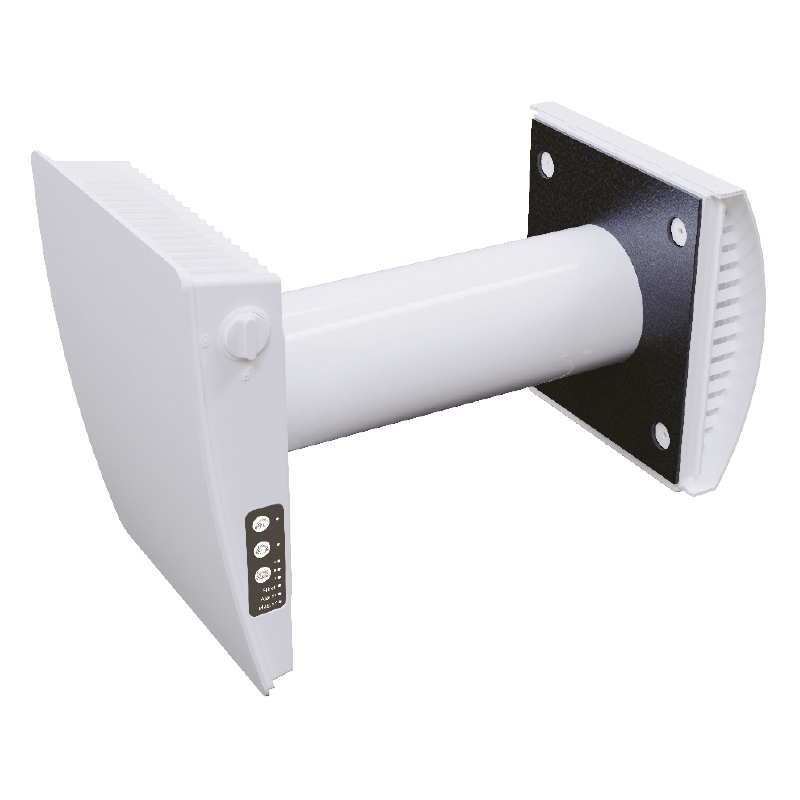

Vents TwinFresh Style Wi-Fi mini

Name: Vents TwinFresh Style Wi-Fi mini
Brand: VENTS
Availability: InStock

The user-friendly TwinFresh Style Wi-Fi mini ventilator will provide the room with clean and fresh air. Significant reduction in ventilation heat loss due to heat recovery. Humidity balance and regulated air exchange create individually controlled microclimate

Air flow in heat recovery mode: 15 m³/h
Sound pressure level LpA at 3 m: 31 dB(A)
Sound pressure level LpA at 1 m: 40 dB(A)
Heat exchanger type: Regenerative
Filter: G3
Sound-insulated casing
Control: Smartphone, Remote Control, Built-in control panel
Casing material: Plastic
CO2 sensor: Optional

	Unit of measurement	TwinFresh Style Wi-Fi mini
Phases	-	1
Minimum supply voltage	V	100
Maximum supply voltage	V	240
Power supply frequency	Hz	50/60
Rated power	W	1.80	3.00	4.40
Unit current	A	0.03	0.04	0.05
Air flow in ventilation mode	m³/h	10	20	30
Air flow in heat recovery mode	m³/h	5	10	15
Rotation speed at 50hz	-	1600	2200	2500
Sound pressure level LpA at 3 m	dB(A)	21	28	31
Sound pressure level LpA at 1 m	dB(A)	30	37	40
Heat recovery efficiency, max	%	81
Heat exchanger type	-	Regenerative
Filter	-	G3
Transported air temperature (max)	°С	40
Transported air temperature (min)	°С	-15
Ambient air temperature min	°С	1
Ambient air temperature max	°С	40
Ingress protection rating	-	IP24
Ambient air humidity max	%	65

Create PDF

Trademark	Vents
Model	TwinFresh Style Wi-Fi mini
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-80.8	A+	-40.2	A	-17	E
Type of ventilation unit	Bidirectional
Type of drive installed	Variable speed
Type of heat recovery system	Regenerative
Thermal efficiency of heat recovery (%)	71
Maximum flow rate (m³/h)	30
Electric power input (W)	4.4
Reference flow rate (m³/s)	0.006
Specific power input (SPI) (W/(m³/h))	0.15
Control typology	Local demand control
Airflow sensitivity at +20 Pa and -20 Pa (%)	0.4
Declared typology	RVU BVU
Sound power level (dB(A))	48
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	87		87		87
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	83		42		19

Datasheet

"VENTS TwinFresh Style Wi-Fi mini" product description 02-2021

4.01 Mb

Manual

"Connection to a "Smart House" system" - connection guide 03-2026 (V133-4-1EN-02)

519 Kb

Manual

"VENTS TwinFresh Style Wi-Fi" user's manual 04-2026 (V222-1EN-04)

4.71 Mb

BIM/CAD models

TwinFresh Style

2.28 Mb


TwinFresh Style Wi-Fi mini - image 1

231 Kb

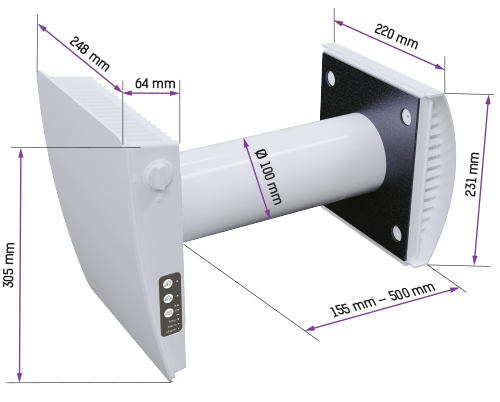

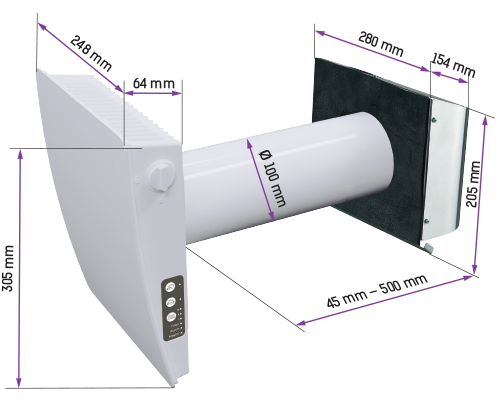

Vents TwinFresh Style Wi-Fi mini - Dimensions

Sensors

Name	Photo	Description
Vents CO2-1		CO2 sensors
Vents CO2-2		CO2 sensors

Metal

Name	Photo	Description
Vents MVMO 100 bV1s An		Single-row flanged metal grilles with angled louvers, optional flange

Other accessories

Name	Photo	Description
Vents EH-2 chrome 100		Outer hood for thin walls
Vents EH-2 grey 100		Outer hood for thin walls
Vents EH-13 chrome 100		Outer hood for cold climate
Vents EH-13 white 100		Outer hood for cold climate

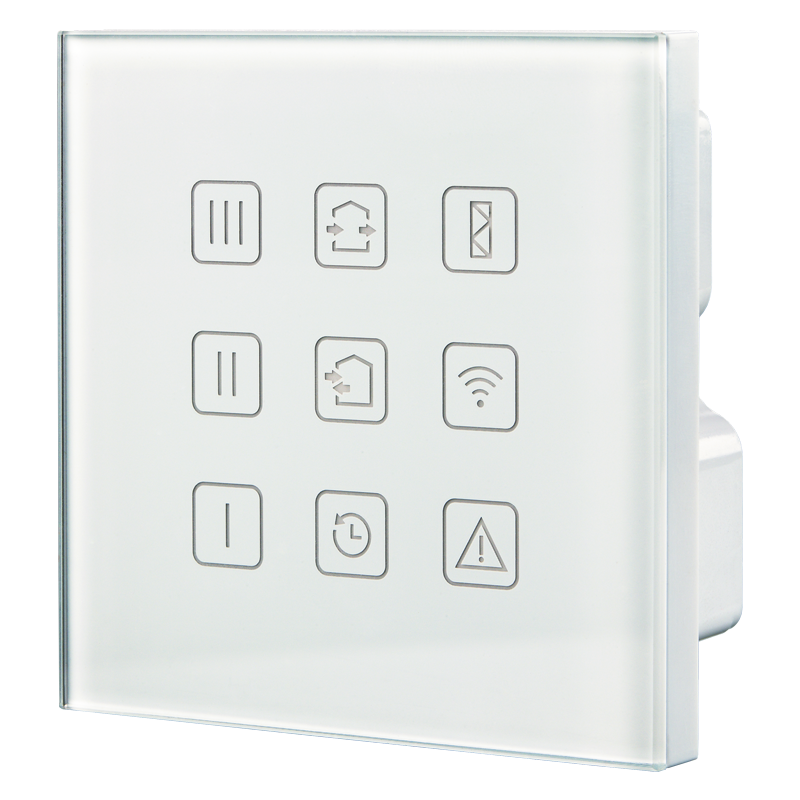

Vents KV TwinFresh Style		Wi-Fi sensor control panel
Vents NP white 100		Angular mounting kit
Vents NP chrome 100		Angular mounting kit
Vents RK1 TwinFresh		Remote control
Vents SF3 TwinFresh G3		G3 filter kit (2 pcs.)
Vents T TwinFresh Style		Cardboard template for indoor installation of the unit
