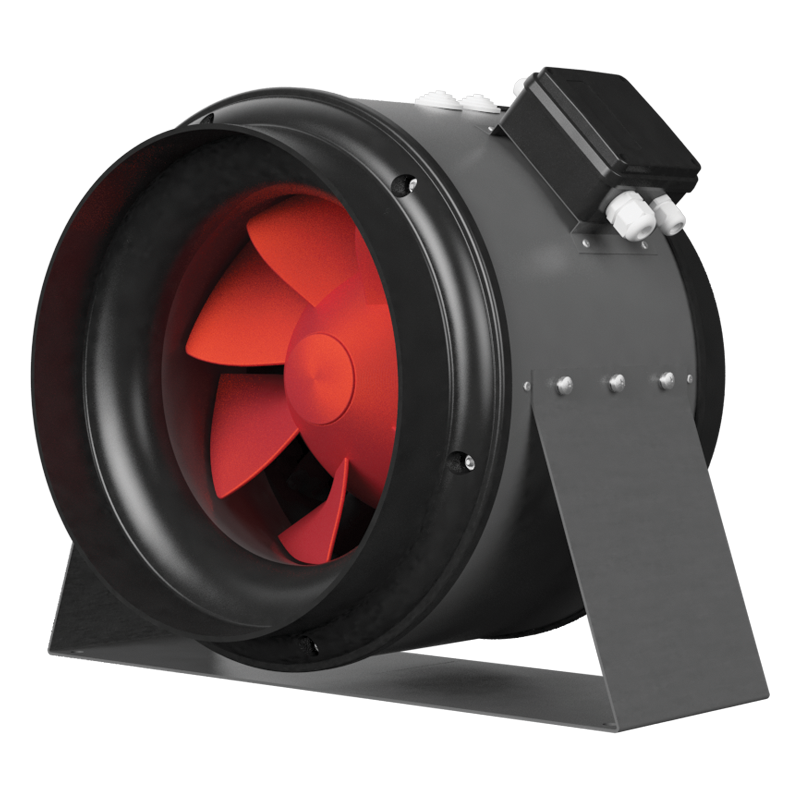

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round ducts / Boost / Boost 355 (220V/60Hz) P| Unit of measurement | Boost 355 (220V/60Hz) P | |||
| Speed | - | 1 | 2 | 3 |
| Connected air duct size | mm | 355 | ||
| Phases | - | 1 | ||
| Minimum supply voltage | V | 230 | ||
| Maximum supply voltage | V | 230 | ||
| Power supply frequency | Hz | 60 | ||
| Weight | kg | 15 | ||
| Transported air temperature (max) | °С | 55 | ||
| Transported air temperature (min) | °С | -25 | ||
| Ingress protection rating | - | IPX4 | ||
| Ingress protection rating of the drive | - | IP20 | ||
| Impeller material | - | Plastic |

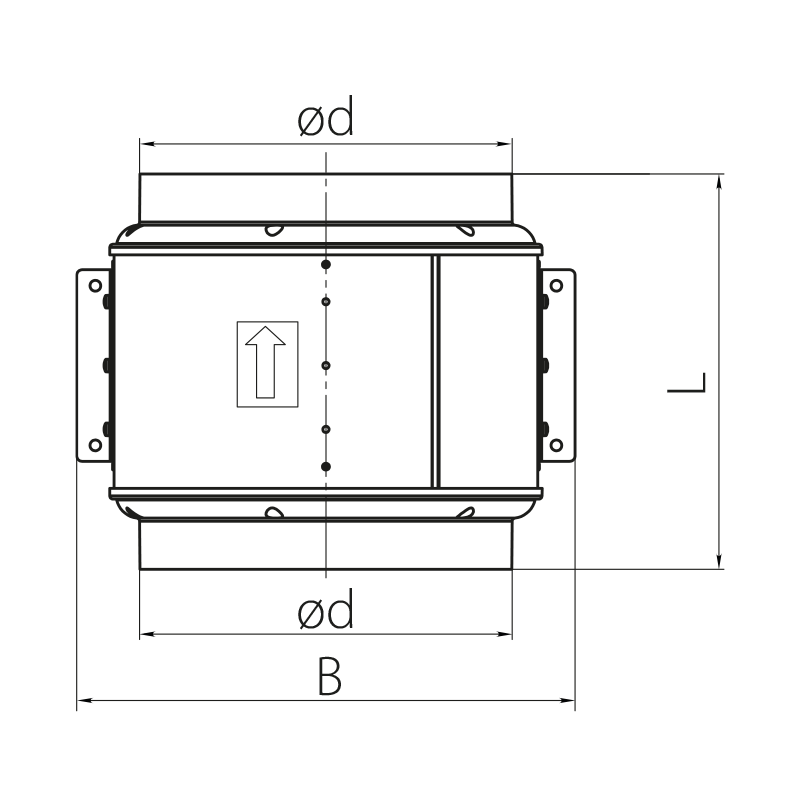

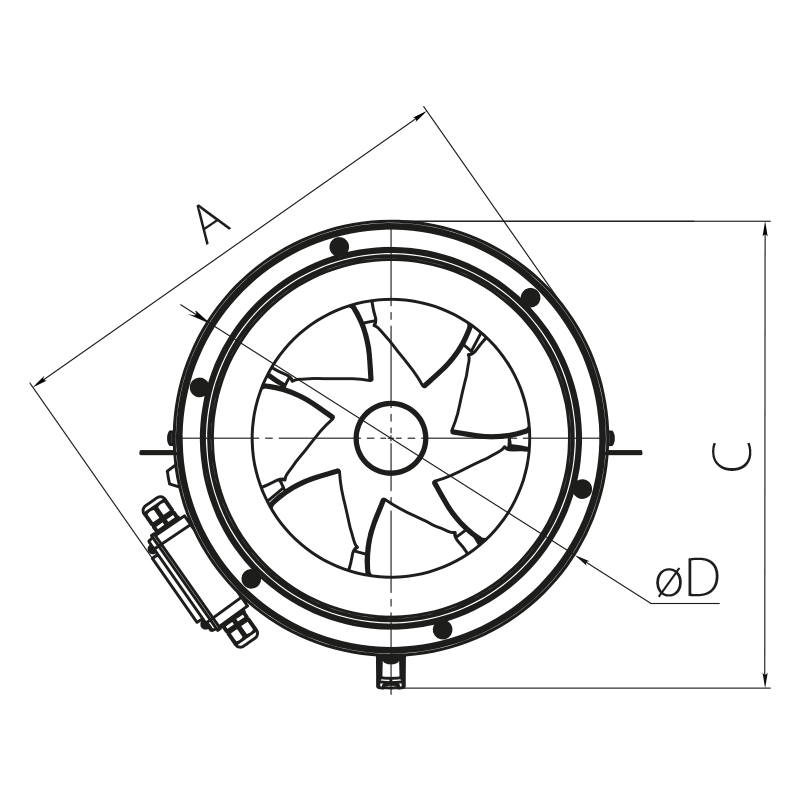

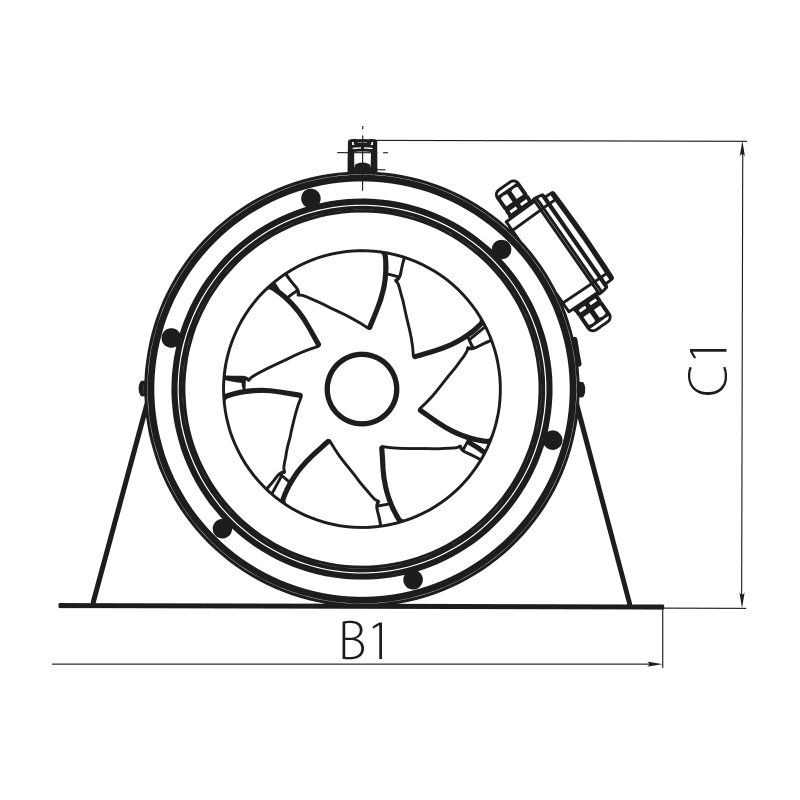

| ∅D | ∅d | A | L | B | B1 | C | C1 |
|---|---|---|---|---|---|---|---|
| 406 | 350 | 451 | 372 | 468 | 566 | 437 | 439 |
| Name | Photo | Description |
|---|---|---|
| Vents SR 355/600 |
|
Silencers made of galvanized steel filled with non-combustible sound-absorbing material |
| Vents SR 355/900 |
|
Silencers made of galvanized steel filled with non-combustible sound-absorbing material |
| Vents SR 355/1200 |
|
Silencers made of galvanized steel filled with non-combustible sound-absorbing material |
| Name | Photo | Description |
|---|---|---|
| Vents KOM1 355 |
|
Backdraught gravity damper for shutting off air flow in round air ducts |
| Vents KR 355 |
|
Air dampers for controlling air flow in round air ducts |
| Vents KRV 355 |
|
Air dampers for automatic air flow control in round ducts |
| Name | Photo | Description |
|---|---|---|
| Vents VVG 355 |
|
Flexible anti-vibration inserts for round ducts |
| Name | Photo | Description |
|---|---|---|
| Vents RS-1-400 |
|
Speed controller |
| Vents RS-3,0-T |
|
Applied in ventilation systems for speed switching ON/OFF and speed control of single-phase power-controlled motors |
| Vents RS-5,0-T |
|
Applied in ventilation systems for speed switching ON/OFF and speed control of single-phase power-controlled motors |
| Vents RS-10,0-T |
|
Applied in ventilation systems for speed switching ON/OFF and speed control of single-phase power-controlled motors |
| Name | Photo | Description |
|---|---|---|
| Vents RS-1,5-PS |
|
Used in ventilation systems for switching on/off and speed control of single-phase fan motors with voltage control |
| Vents RS-2,5-PS |
|
Used in ventilation systems for switching on/off and speed control of single-phase fan motors with voltage control |
| Vents RS-4,0-PS |
|
Used in ventilation systems for switching on/off and speed control of single-phase fan motors with voltage control |
| Name | Photo | Description |
|---|---|---|
| Vents P3-1-300 |
|
Switch |
