/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round ducts / Boost / Boost 315 S
| Unit of measurement | Boost 315 S | |||
| Speed | - | 1 | 2 | 3 |
| Connected air duct size | mm | 315 | ||
| Phases | - | 1 | ||
| Minimum supply voltage | V | 230 | ||
| Maximum supply voltage | V | 230 | ||
| Power supply frequency | Hz | 50 | ||
| Rated power | W | 290 | 462 | 740 |
| Unit current | A | 1.38 | 2.11 | 3.24 |
| Maximum airflow | m³/h | 1590 | 2175 | 3471 |
| Rotation speed at 50hz | - | 1452 | 1948 | 2642 |
| Sound pressure level LpA at 3 m | dB(A) | 36 | 38 | 43 |
| Weight | kg | 15 | ||
| Transported air temperature (max) | °С | 55 | ||
| Transported air temperature (min) | °С | -25 | ||
| Ingress protection rating | - | IPX4 | ||
| Ingress protection rating of the drive | - | IP20 | ||
| Impeller material | - | Plastic | ||

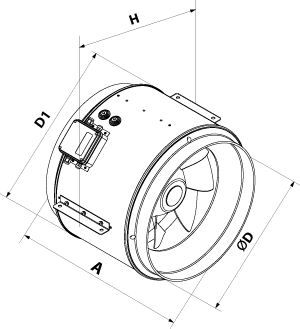

| ∅D | ∅D1 | A | H |
|---|---|---|---|
| 313 | 390 | 388 | 450 |
