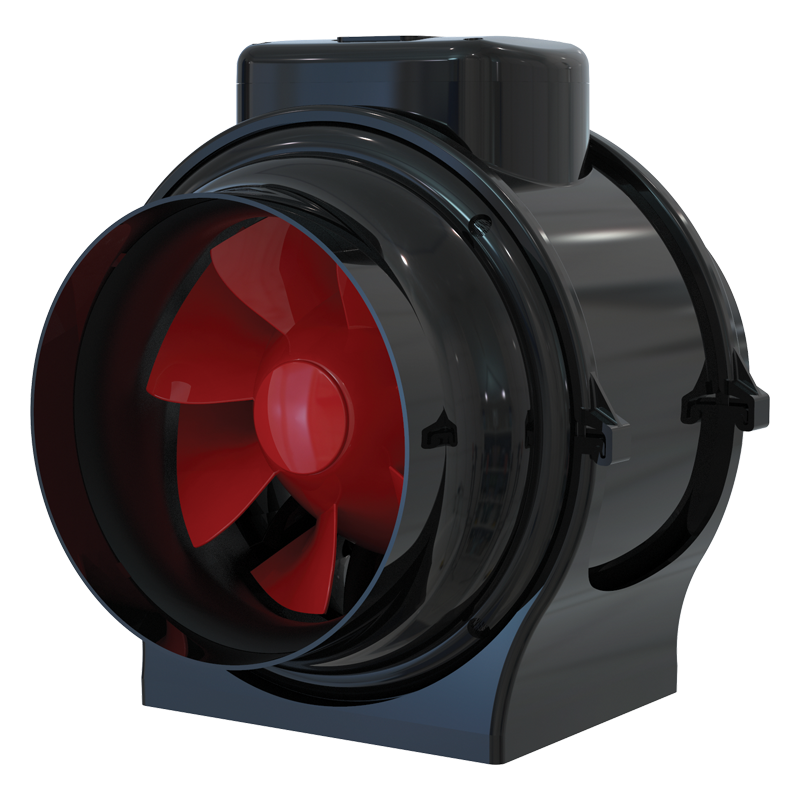

Vents Boost 150 R

Mixed-flow inline fans

	Unit of measurement	Boost 150 R
Speed	-	1	2	3
Connected air duct size	mm	150
Phases	-	1
Minimum supply voltage	V	230
Maximum supply voltage	V	230
Power supply frequency	Hz	50
Rated power	W	34	37	45
Unit current	A	0.15	0.16	0.20
Maximum airflow	m³/h	488	544	600
Rotation speed at 50hz	-	2550	2704	2816
Sound pressure level LpA at 3 m	dB(A)	34	35	37
Weight	kg	2.8
Transported air temperature (max)	°С	55
Transported air temperature (min)	°С	-25
Ingress protection rating	-	IPX4
Ingress protection rating of the drive	-	IP20
Impeller material	-	Plastic

Trademark	Vents
Model	Boost 150 R
Type of drive installed	Integrated VSD
Type of heat recovery system	None
Nominal external pressure (Pa)	128
Maximum external leakage rates (%)	2.7
Static efficiency (%)	28
Declared typology	NRVU UVU
Effective electric power input (kW)	0.043
Sound power level (dB(A))	56

Datasheet

"VENTS BOOST" product description 02-2026

1.84 Mb

Manual

"VENTS BOOST 315/355/400 (EC)" user's manual 02-2026 (V208EN-06)

2.63 Mb

Manual

"VENTS BOOST 100/125/150/160/200/250 (EC)" user's manual 02-2026 (V208-1EN-04)

1.4 Mb

BIM/CAD models

Boost (EC)

2.79 Mb


Boost 150 R - image 1

429 Kb

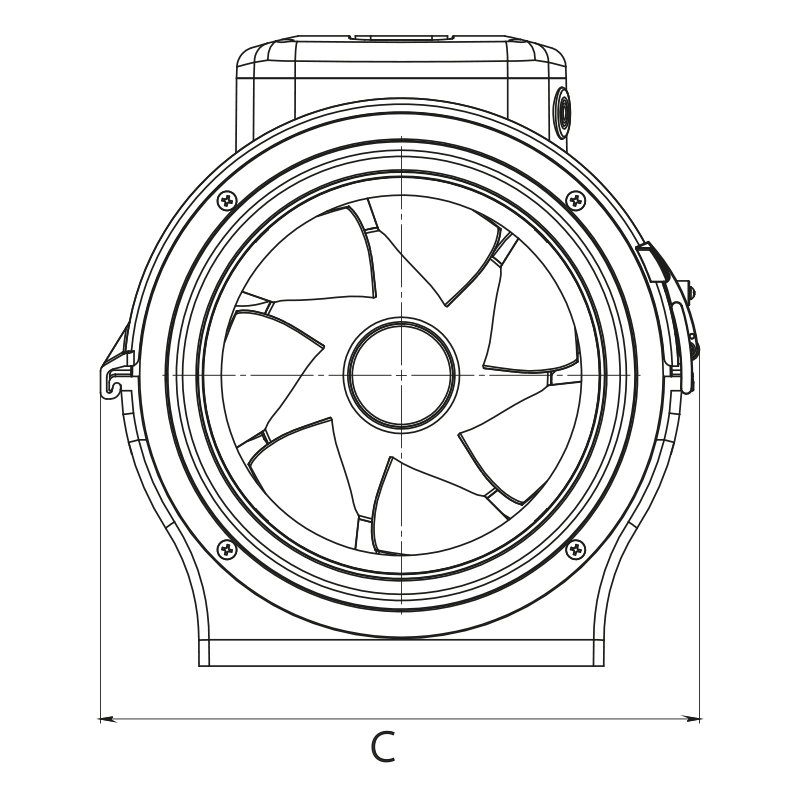

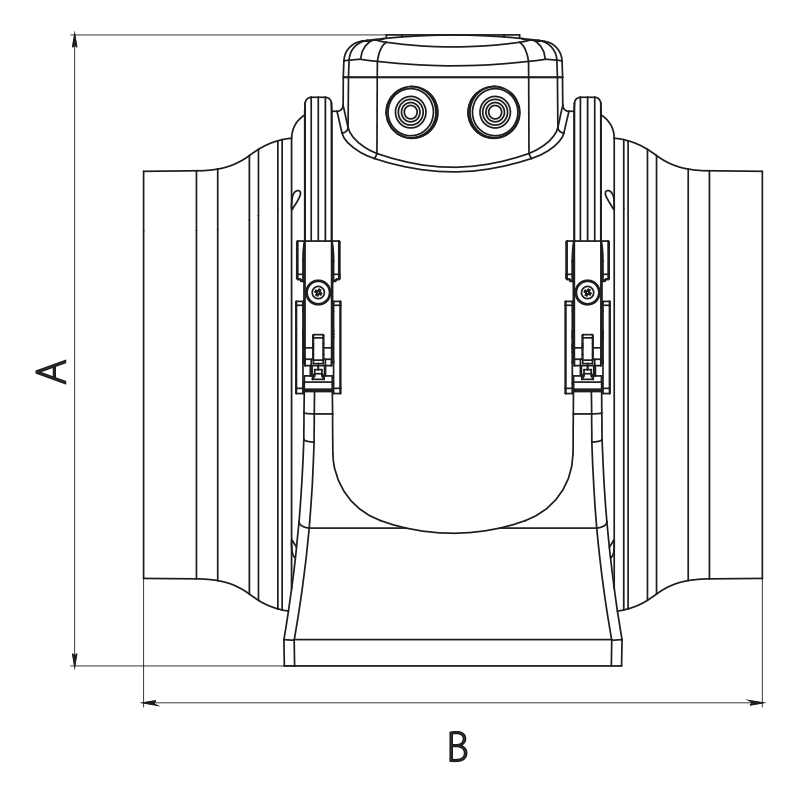

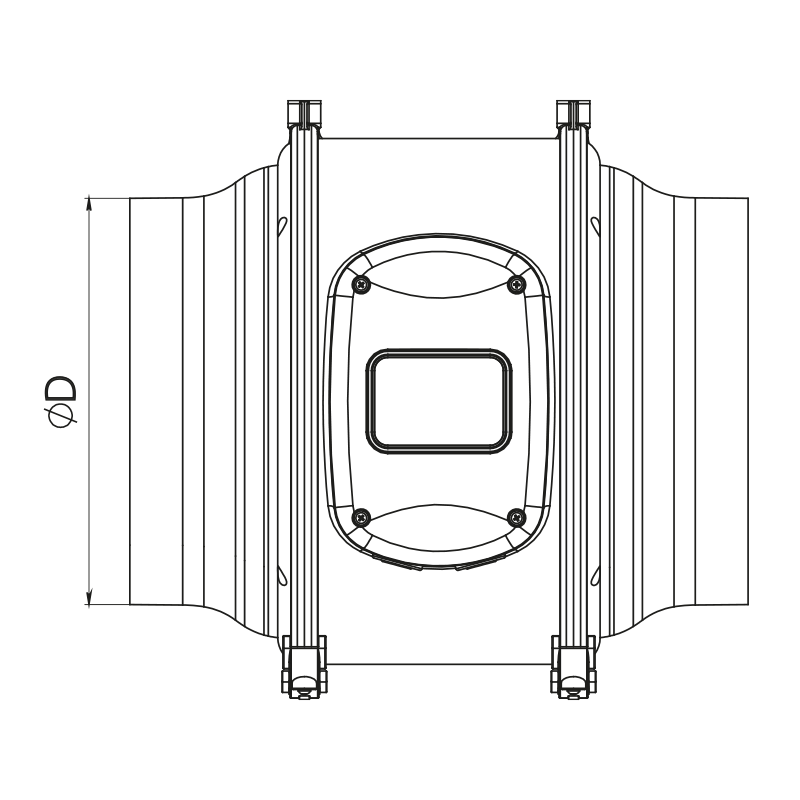

∅D	∅D1	A	H
149	247	301	267
