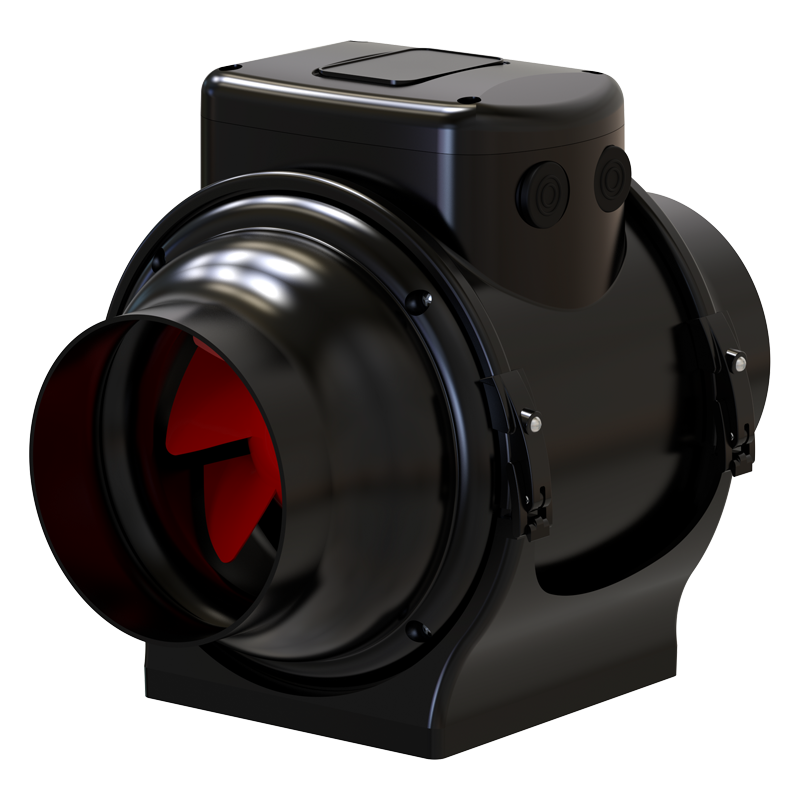

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round ducts / Boost / Boost 125 V
| Unit of measurement | Boost 125 V | |||
| Speed | - | 1 | 2 | 3 |
| Connected air duct size | mm | 125 | ||
| Phases | - | 1 | ||
| Minimum supply voltage | V | 230 | ||
| Maximum supply voltage | V | 230 | ||
| Power supply frequency | Hz | 50 | ||
| Rated power | W | 8 | 12 | 23 |
| Unit current | A | 0.80 | 0.90 | 0.10 |
| Maximum airflow | m³/h | 174 | 241 | 350 |
| Rotation speed at 50hz | - | 1865 | 2492 | 2796 |
| Sound pressure level LpA at 3 m | dB(A) | 20 | 22 | 25 |
| Weight | kg | 3.68 | ||
| Transported air temperature (max) | °С | 55 | ||
| Transported air temperature (min) | °С | -25 | ||
| Ingress protection rating | - | IPX4 | ||
| Ingress protection rating of the drive | - | IP20 | ||
| Impeller material | - | Plastic | ||
| A | B | C | ∅ D |
|---|---|---|---|
| 242 | 300 | 226 | 125 |
| Name | Photo | Description |
|---|---|---|
| Vents SR 125/600 |
|
Silencers made of galvanized steel filled with non-combustible sound-absorbing material |
| Vents SR 125/900 |
|
Silencers made of galvanized steel filled with non-combustible sound-absorbing material |
| Vents SR 125/1200 |
|
Silencers made of galvanized steel filled with non-combustible sound-absorbing material |
| Vents SRP 125/500 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 125/600 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 125/750 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 125/900 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 125/1200 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 125/1500 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Vents SRP 125/2000 |
|
Silencers with an internal flexible air duct made of micro-perforated aluminium foil laminated with polyester film |
| Name | Photo | Description |
|---|---|---|
| Vents FB K2 125 G4/F8 |
|
Panel filters of a high purification level |
| Vents FB K2 125 G4/C/F8 |
|
Panel filters of a high purification level |
| Vents FB K2 125 G4/H13 |
|
Panel filters of a high purification level |
| Vents FB K2 125 G4/C/H13 |
|
Panel filters of a high purification level |
| Vents FB 125 |
|
Round panel air filters |
| Vents FBV 125 |
|
Round panel air filters with a large filtration area |
| Vents FBK 125-4 |
|
Round bag air filters |
| Vents FBK 125-5 |
|
Round bag air filters |
| Vents FBK 125-7 |
|
Round bag air filters |
| Name | Photo | Description |
|---|---|---|
| Vents KOM 125 |
|
Backdraught damper with spring-loaded plates for shutting off air flow in round air ducts |
| Vents KOMu 125 |
|
Backdraught damper with spring-loaded plates for shutting off air flow in round air ducts |
| Vents KOM1 125 |
|
Backdraught gravity damper for shutting off air flow in round air ducts |
| Vents KR 125 |
|
Air dampers for controlling air flow in round air ducts |
| Vents KRV 125 |
|
Air dampers for automatic air flow control in round ducts |
| Name | Photo | Description |
|---|---|---|
| Vents VVG 125 |
|
Flexible anti-vibration inserts for round ducts |
| Name | Photo | Description |
|---|---|---|
| Vents NKV 125-2 |
|
Inline water supply air heaters or heater for air handling units with a round cross-section |
| Vents NKV 125-4 |
|
Inline water supply air heaters or heater for air handling units with a round cross-section |
| Name | Photo | Description |
|---|---|---|
| Vents NK 125-0,6-1 |
|
Round electric inline heaters with round cross-section |
| Vents NK 125-0,8-1 |
|
Round electric inline heaters with round cross-section |
| Vents NK 125-1,2-1 |
|
Round electric inline heaters with round cross-section |
| Vents NK 125-1,6-1 |
|
Round electric inline heaters with round cross-section |
| Vents NK 125-2,4-1 |
|
Round electric inline heaters with round cross-section |
| Name | Photo | Description |
|---|---|---|
| Vents RS-1-400 |
|
Speed controller |
| Vents RS-3,0-T |
|
Applied in ventilation systems for speed switching ON/OFF and speed control of single-phase power-controlled motors |
| Vents RS-5,0-T |
|
Applied in ventilation systems for speed switching ON/OFF and speed control of single-phase power-controlled motors |
| Vents RS-10,0-T |
|
Applied in ventilation systems for speed switching ON/OFF and speed control of single-phase power-controlled motors |
| Name | Photo | Description |
|---|---|---|
| Vents RS-0,5-PS |
|
Used in ventilation systems for switching on/off and speed control of single-phase fan motors with voltage control |
| Vents RS-1,5-PS |
|
Used in ventilation systems for switching on/off and speed control of single-phase fan motors with voltage control |
| Vents RS-2,5-PS |
|
Used in ventilation systems for switching on/off and speed control of single-phase fan motors with voltage control |
| Vents RS-4,0-PS |
|
Used in ventilation systems for switching on/off and speed control of single-phase fan motors with voltage control |
| Name | Photo | Description |
|---|---|---|
| Vents P3-1-300 |
|
Switch |
