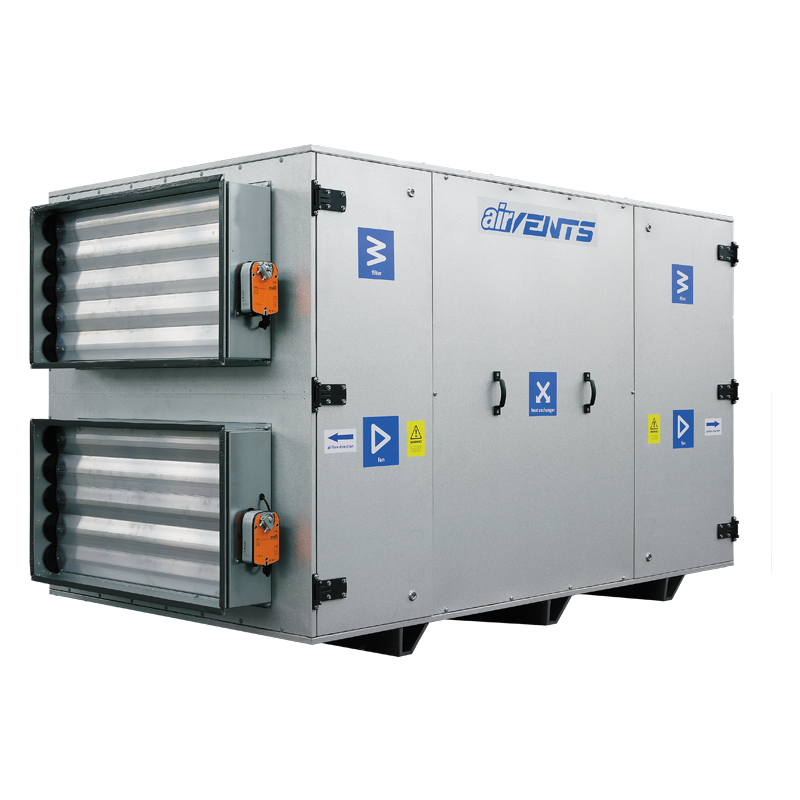

/ Product catalogue / Centralized air handling units / Counterflow commercial AHU / Horizontal Units / AirVENTS CFH / AV02 CFH 1500
| Unit of measurement | AV02 CFH 1500 | |
| Casing performance | - | 40 mm, T3/TB4 |
| Connected air duct size | mm | 600x350 |
| Phases | - | 1 |
| Minimum supply voltage | V | 200 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50/60 |
| Rated power supply fan | W | 700 |
| Rated power extract fan | W | 700 |
| Unit current (without electric heaters) | A | 6.35 |
| Maximum airflow | m³/h | 1950 |
| Maximum airflow at ESP 200 Pa | m³/h | 1800 |
| Sound pressure level LpA at 3 m | dB(A) | 36 |
| Heat exchanger type | - | Plate counterflow |
| Heat exchanger material | - | Profiled polystyrene plates |
| Weight | kg | 295 |
| Supply filter | - | ePM1 70% (ISO 16890)-F7 (EN779) |
| Extract filter | - | ePM1 70% (ISO 16890)-F7 (EN779) |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature max | °С | 60 |
| Ambient air temperature min | °С | -40 |
| Ingress protection rating | - | IP22 |
| Ingress protection rating of the drive | - | IP54 |
