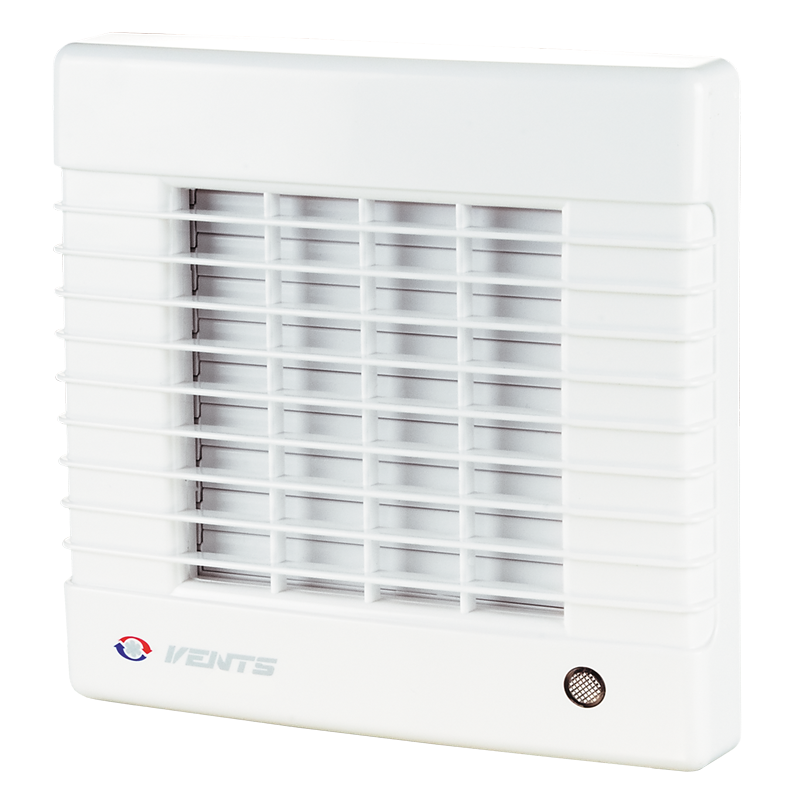

| Unit of measurement | 150 MA TH L | |
| Connected air duct size | mm | 150 |
| Phases | - | 1 |
| Minimum supply voltage | V | 220 |
| Maximum supply voltage | V | 240 |
| Power supply frequency | Hz | 50 |
| Rated power | W | 26 |
| Unit current | A | 0.13 |
| Maximum airflow | m³/h | 295 |
| Rotation speed at 50hz | - | 2400 |
| Sound pressure level LpA at 3 m | dB(A) | 39 |
| Weight | kg | 1.02 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP24 |
| Impeller material | - | Plastic |
| ∅D | B | B1 | B2 | H | L | L1 |
|---|---|---|---|---|---|---|
| 150 | 212 | 196 | 150 | 195 | 114 | 33 |
| Name | Photo | Description |
|---|---|---|

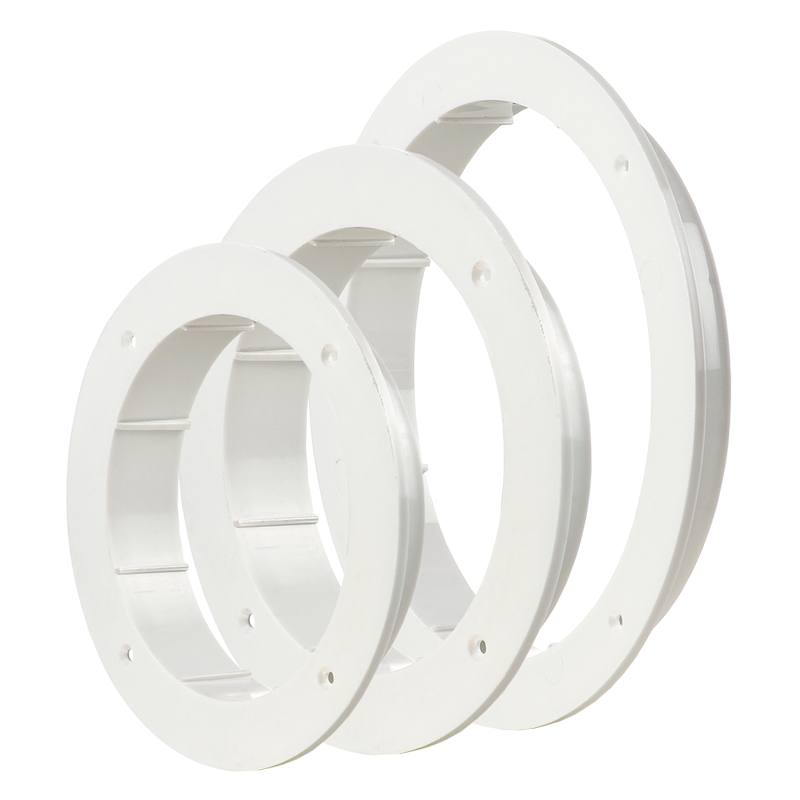

| Vents FO 150 |
|
The window flange |
