| Unit of measurement | 100 Modern | |
| Connected air duct size | mm | 100 |
| Phases | - | 1 |
| Maximum supply voltage | V | 240 |
| Minimum supply voltage | V | 220 |
| Power supply frequency | Hz | 50/60 |
| Rated power | W | 14 |
| Unit current | A | 0.085 |
| Maximum airflow | m³/h | 88 |
| Rotation speed at 50hz | - | 2300 |
| Sound pressure level LpA at 3 m | dB(A) | 33 |
| Weight | kg | 0.6 |
| Ambient air temperature max | °С | 40 |
| Ambient air temperature min | °С | 1 |
| Ingress protection rating | - | IP34 |
| Impeller material | - | Plastic |
| Trademark | Vents | |||||
| Model | 100 Modern | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -30 | B | -14 | E | -5 | F | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | Multi-speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 88 | |||||
| Electric power input (W) | 14 | |||||
| Reference flow rate (m³/s) | 0.017 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.102 | |||||
| Control typology | Manual control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 53 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 100 | 100 | 100 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 3400 | 1700 | 800 | ||||

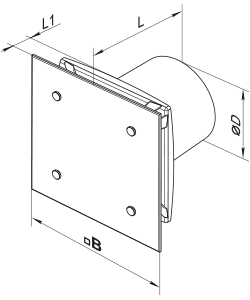

| ∅D | B | L | L1 |
|---|---|---|---|
| 100 | 170 | 130 | 35 |
| Name | Photo | Description |
|---|---|---|
| Vents KO 100 |
|
Back valve is designed for domestic fan |
| Name | Photo | Description |
|---|---|---|
| Vents FO 100 |
|
The window flange |
