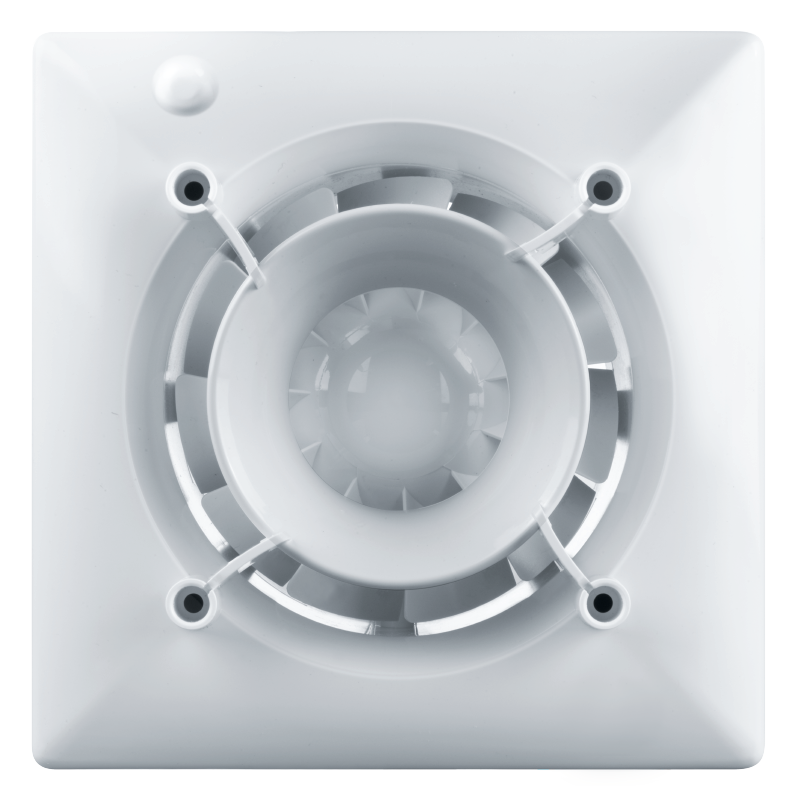

Vents 100 Ace T1 L

Quiet axial extract fans with low power consumption, compatible with the Design decorative panels

Sound pressure level LpA at 3 m: 29 dB(A)
Impeller type: Mixed-flow
Casing material: Plastic
Timer: Turn off timer
Ball bearing

	Unit of measurement	100 Ace T1 L
Connected air duct size	mm	100
Phases	-	1
Minimum supply voltage	V	220
Maximum supply voltage	V	240
Power supply frequency	Hz	50
Rated power	W	8
Unit current	A	0.05
Maximum airflow	m³/h	90
Rotation speed at 50hz	-	2165
Sound pressure level LpA at 3 m	dB(A)	29
Ambient air temperature min	°С	1
Ambient air temperature max	°С	40
Ingress protection rating	-	IP44
Impeller material	-	Plastic

Create PDF

Trademark	Vents
Model	100 Ace T1 L
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-34	A	-16.1	E	-5.8	F
Type of ventilation unit	Unidirectional
Type of drive installed	Single speed
Type of heat recovery system	None
Maximum flow rate (m³/h)	90
Electric power input (W)	8
Reference flow rate (m³/s)	0.018
Specific power input (SPI) (W/(m³/h))	0.089
Control typology	Clock control
Maximum external leakage rates (%)	2.7
Declared typology	RVU UVU
Sound power level (dB(A))	49
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	106		106		106
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	3667		1874		848

Datasheet

"DESIGN CONCEPT: design solutions for domestic ventilation" сatalogue 2024

13.4 Mb

Manual

"VENTS Ace" user’s manual 05-2025 (V160-2EN-03)

2.17 Mb


100 Ace T1 L - image 1

453 Kb

∅D	B	L	L1
99	151	79	36

Plastic
